LPF-16-48

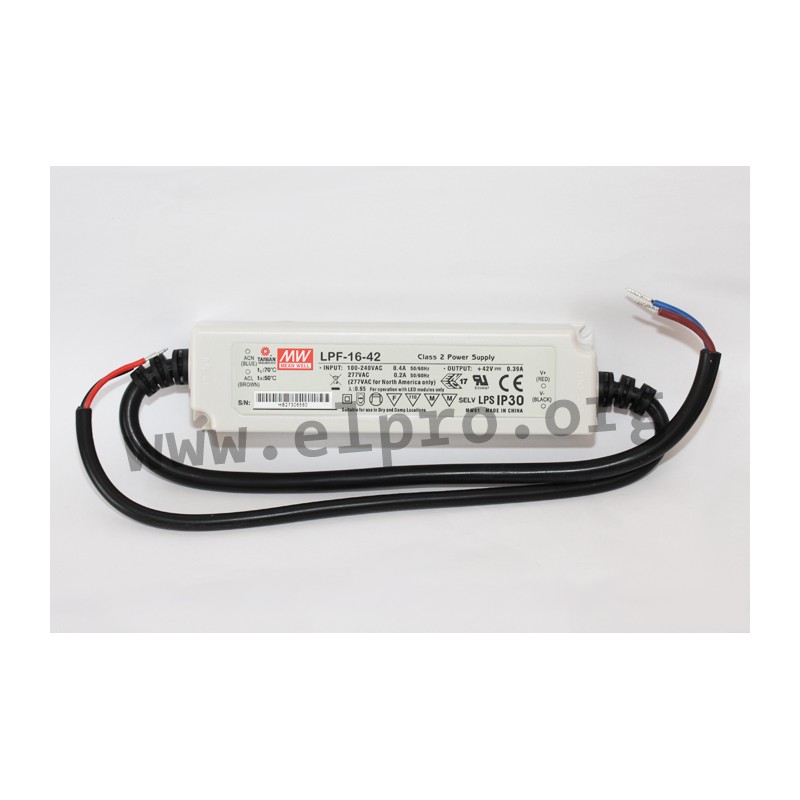

Mean Well LED driver series LPF-16

LED drivers in a plastic housing (IP30) with a constant voltage/constant current (mixed mode), 16W and a universal input. These devices are suitable for LED lighting applications and comply with UL1310 Class 2, EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-16-12, LPF-16-15, LPF-16-20, LPF-16-24, LPF-16-30, LPF-16-36, LPF-16-42, LPF-16-48 and LPF-16-54.

  • single output
  • output: 16 to 16,38W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -35 to +70°C

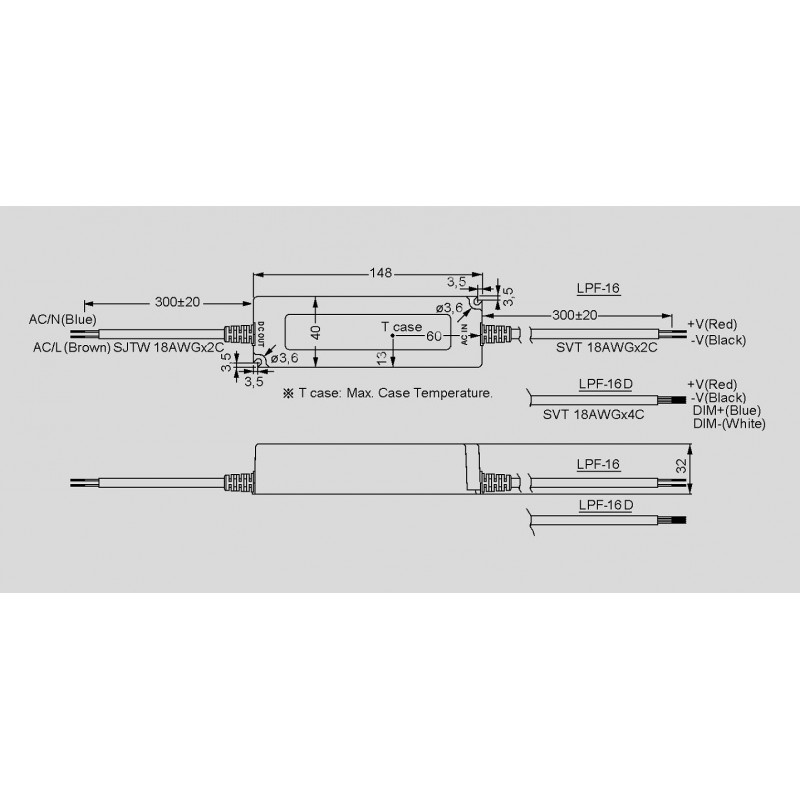

  • dimensions: 148x40x32mm
  • weight: 210g

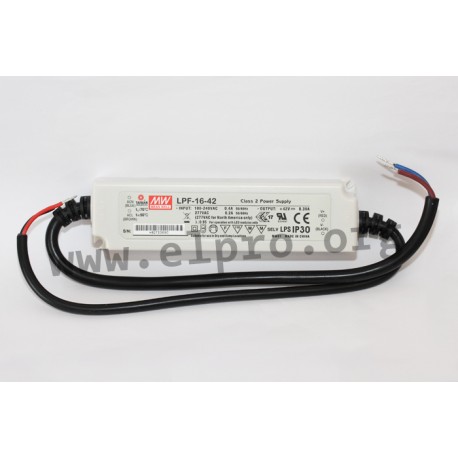

Meanwell LPF-16 series

LPF-16-48

36497 LPF-16-48 LPF-16-48 4711287439853 Mean Well LED driver series LPF-16. LED drivers in a plastic housing (IP30) with a constant voltage/constant current (mixed mode), 16W and a universal input. These devices are suitable for LED lighting applications and comply with UL1310 Class 2, EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-16-12, LPF-16-15, LPF-16-20, LPF-16-24, LPF-16-30, LPF-16-36, LPF-16-42, LPF-16-48 and LPF-16-54. single output output: 16 to 16,38W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC operating temperature: -35 to +70°C dimensions: 148x40x32mm weight: 210g

Specifications

manufacturer
Manufacturer's name LPF-16-48
GTIN 4711287439853
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0,34
Output voltage tolerance: [%] 4
Output power [W] 16,32
Ripple [mVp-p] 250
Data Sheet

Unit price

17,69 €

Volume discounts

Quantity Unit price
50 + 16,49 €

Stock: 42
Further delivery:
CW 16/2025
