LPC-35-1050

Mean Well LED driver series LPC-35

LED drivers in a plastic housing (IP67) with a constant current, 35W and a universal input. They comply with UL1310 class 2, UL1310, EN62368-1, IEC62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-35-700, LPC-35-1050 and LPC-35-1400.

  • single output
  • output: 31,5 to 33,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 148x40x30mm
  • weight: 340g

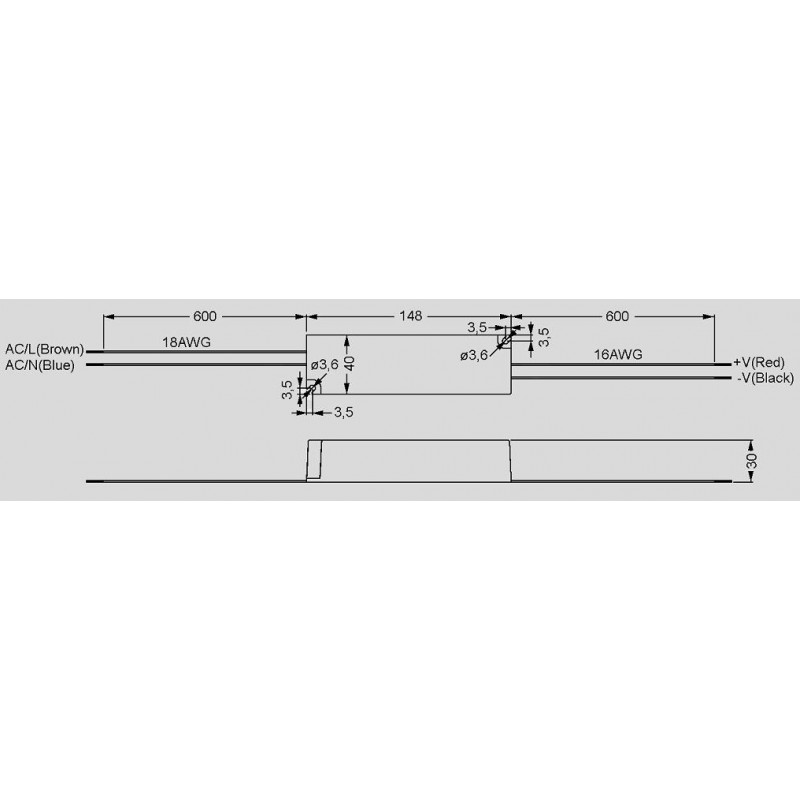

dimensions

LPC-35-1050

33063 LPC-35-1050 LPC-35-1050 4711287455884 Mean Well LED driver series LPC-35. LED drivers in a plastic housing (IP67) with a constant current, 35W and a universal input. They comply with UL1310 class 2, UL1310, EN62368-1, IEC62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-35-700, LPC-35-1050 and LPC-35-1400. single output output: 31,5 to 33,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 148x40x30mm weight: 340g

Specifications

manufacturer
Manufacturer's name LPC-35-1050
GTIN 4711287455884
Output voltage [V] 9...30
Phase 2 phase
Output current tolerance [%] 5
Efficiency [%] 85
Output current range [A] 1,05
Output power [W] 31,5
Ripple [mV] 200
Data Sheet
