LPC-150-3150

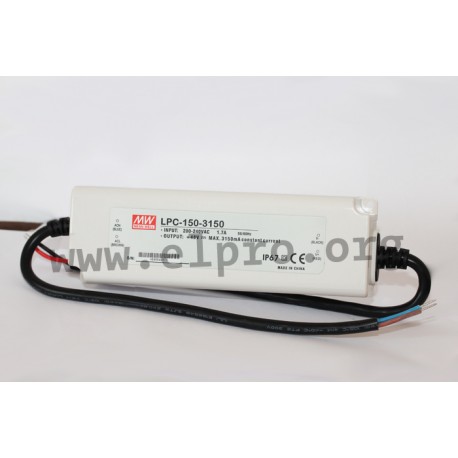

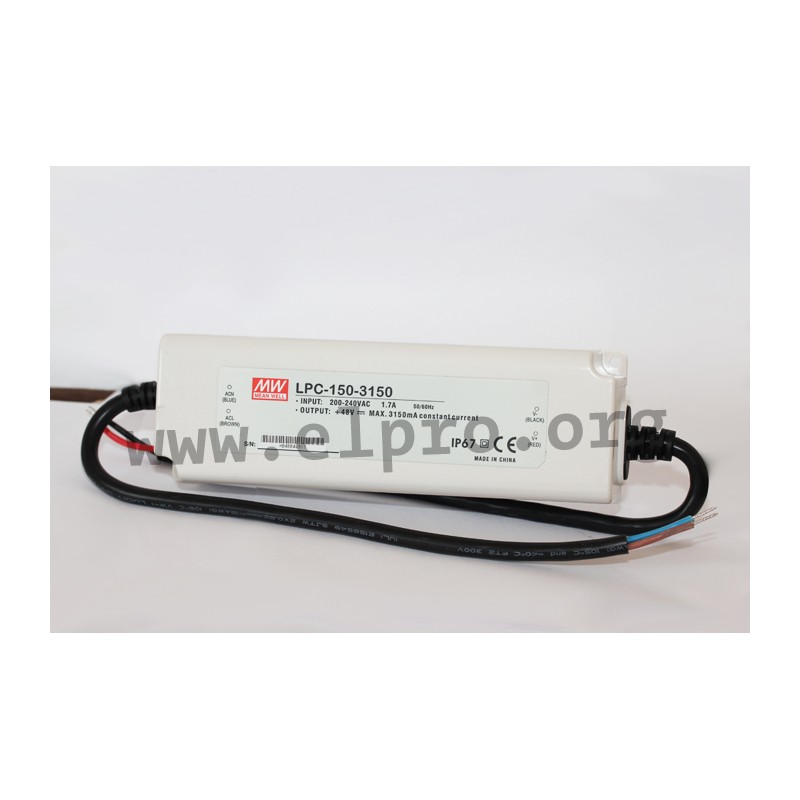

Mean Well LED driver series LPC-150

LED drivers in a plastic housing (IP67) with a constant current, 150W and protection class II. These devices comply with EN62368-1, IEC62368-1 as well as EN55032 class B and are not dimmable. They are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPC-150-350, LPC-150-500, LPC-150-700, LPC-150-1050, LPC-150-1400, LPC-150-1750, LPC-150-2100, LPC-150-2450, LPC150-2800 and LPC-150-3150.

  • single output
  • output: 150 to 151,9W
  • input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3000V AC

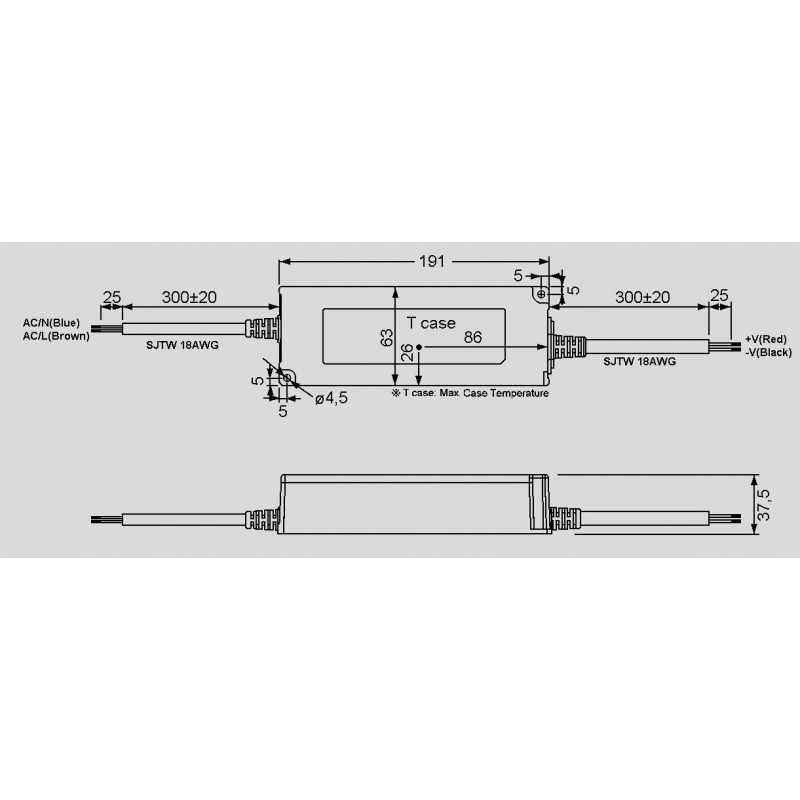

  • dimensions: 191x63x37,5mm
  • weight: 740g
LPC-150-3150

LPC-150-3150

45015 LPC-150-3150 LPC-150-3150 4711287456072 Mean Well LED driver series LPC-150. LED drivers in a plastic housing (IP67) with a constant current, 150W and protection class II. These devices comply with EN62368-1, IEC62368-1 as well as EN55032 class B and are not dimmable. They are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPC-150-350, LPC-150-500, LPC-150-700, LPC-150-1050, LPC-150-1400, LPC-150-1750, LPC-150-2100, LPC-150-2450, LPC150-2800 and LPC-150-3150. single output output: 150 to 151,9W input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3000V AC dimensions: 191x63x37,5mm weight: 740g

Specifications

manufacturer
Manufacturer's name LPC-150-3150
GTIN 4711287456072
Output voltage [V] 24...48
Output current range [mA] 3150
Output current tolerance [%] 5
Ripple [Vp-p] 1
Efficiency [%] 90
Output power [W] 151,2
Data Sheet

Unit price

29,39 €

Volume discounts

Quantity Unit price
50 + 27,39 €

Stock: 27
Further delivery:
CW 11/2025
