LPC-100-1750

Mean Well LED driver series LPC-100

LED drivers in a plastic housing (IP67) with a universal input, 100W, protection class II and a constant current. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-100-350, LPC-100-500, LPC-100-700, LPC-100-1050, LPC-100-1400, LPC-100-1750 and LPC-100-2100.

  • single output
  • output: 100 to 100,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3000V AC

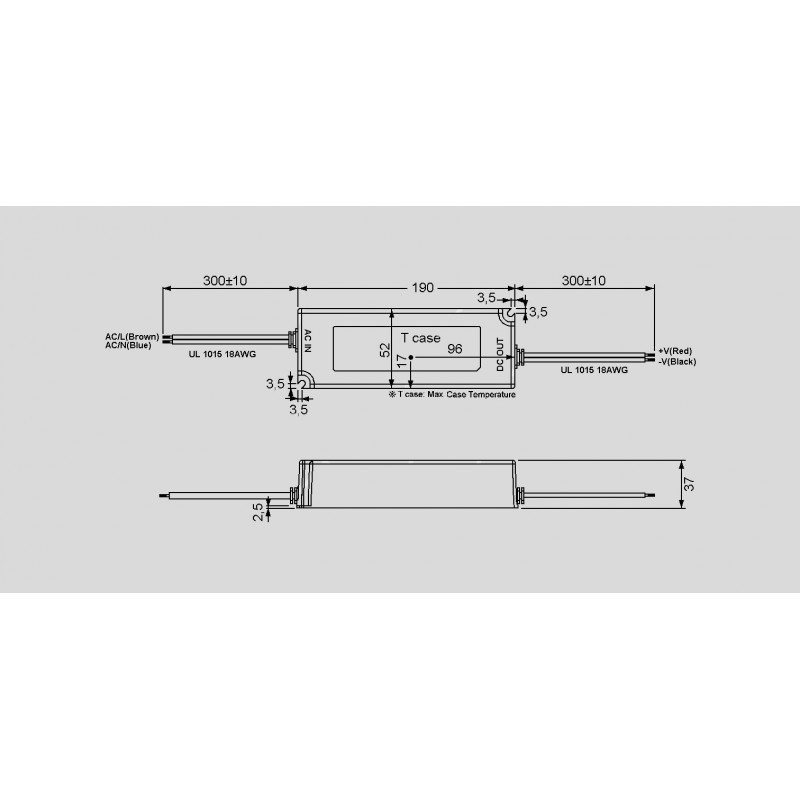

  • dimensions: 190x52x37mm
  • weight: 610g
Mean Well LPC-100 series

LPC-100-1750

104691 LPC-100-1750 LPC-100-1750 4711287455969 Mean Well LED driver series LPC-100. LED drivers in a plastic housing (IP67) with a universal input, 100W, protection class II and a constant current. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN62368-1, IEC62368-1 as well as EN55032 class B. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-100-350, LPC-100-500, LPC-100-700, LPC-100-1050, LPC-100-1400, LPC-100-1750 and LPC-100-2100. single output output: 100 to 100,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3000V AC dimensions: 190x52x37mm weight: 610g

Specifications

manufacturer
Manufacturer's name LPC-100-1750
GTIN 4711287455969
Output voltage [V] 29...58
Output current tolerance [%] 5
Ripple [Vp-p] 1
Efficiency [%] 89,5
Output power [W] 101,5
Output current [mA] 1750
Data Sheet

Unit price

21,69 €

Volume discounts

Quantity Unit price
50 + 20,29 €

Stock: 15
Further delivery:
CW 11/2025
