LOP-500-54

Mean Well power supply series LOP-500

Open frame switching power supplies with 500W (forced air), an adjustable output voltage, a low no-load power, an auxiliary power output (12V/0,5A), protection class I/II and an extremely low leakage current. These devices are suitable for medical technology applications (2xMOPP), have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a peak load capability of 150% and comply with EN60601-1, EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN55014. We offer the following types of this Mean Well series: LOP-500-12, LOP-500-15, LOP-500-18, LOP-500-24, LOP-500-27, LOP-500-36, LOP-500-48 and LOP-500-54.

  • single output
  • output: 499,2 to 502,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 127x76,2x30,5mm
  • weight: 420g

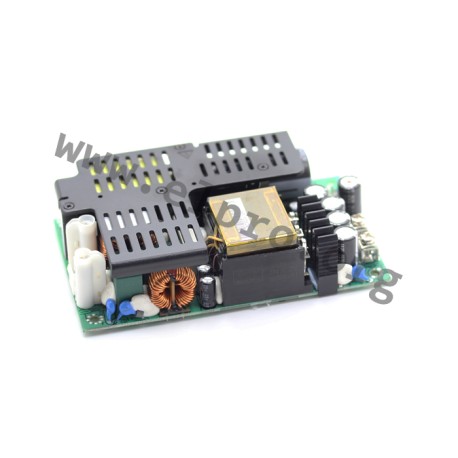

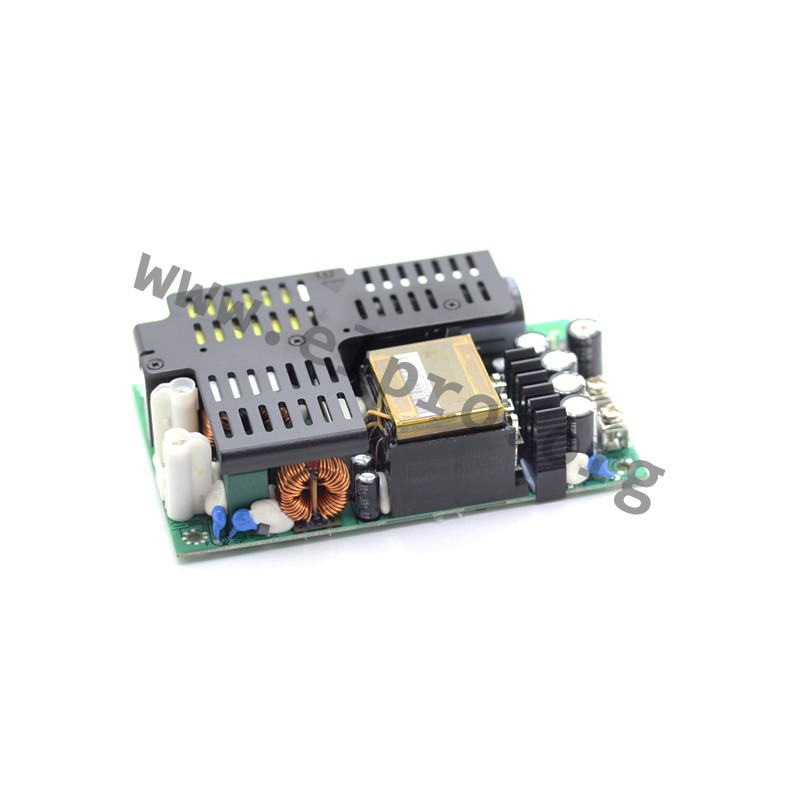

LOP-500-54, Mean Well switching power supplies, 500W (forced air), for medical technology, open frame (PCB), LOP-500 series

LOP-500-54

245473 LOP-500-54 LOP-500-54 Mean Well power supply series LOP-500. Open frame switching power supplies with 500W (forced air), an adjustable output voltage, a low no-load power, an auxiliary power output (12V/0,5A), protection class I/II and an extremely low leakage current. These devices are suitable for medical technology applications (2xMOPP), have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a peak load capability of 150% and comply with EN60601-1, EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN55014. We offer the following types of this Mean Well series: LOP-500-12, LOP-500-15, LOP-500-18, LOP-500-24, LOP-500-27, LOP-500-36, LOP-500-48 and LOP-500-54. single output output: 499,2 to 502,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A no-load power: &lt;0,5W withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 127x76,2x30,5mm weight: 420g

Specifications

manufacturer
Manufacturer's name LOP-500-54
Output voltage [V] 54
Efficiency [%] 95
Output current [A] 9,3
Output power [W] 502,2
Ripple [mVp-p] 250
Data Sheet

Unit price

64,49 €

Volume discounts

Quantity Unit price
50 + 62,29 €

Stock: 10
Further delivery:
CW 09/2025
