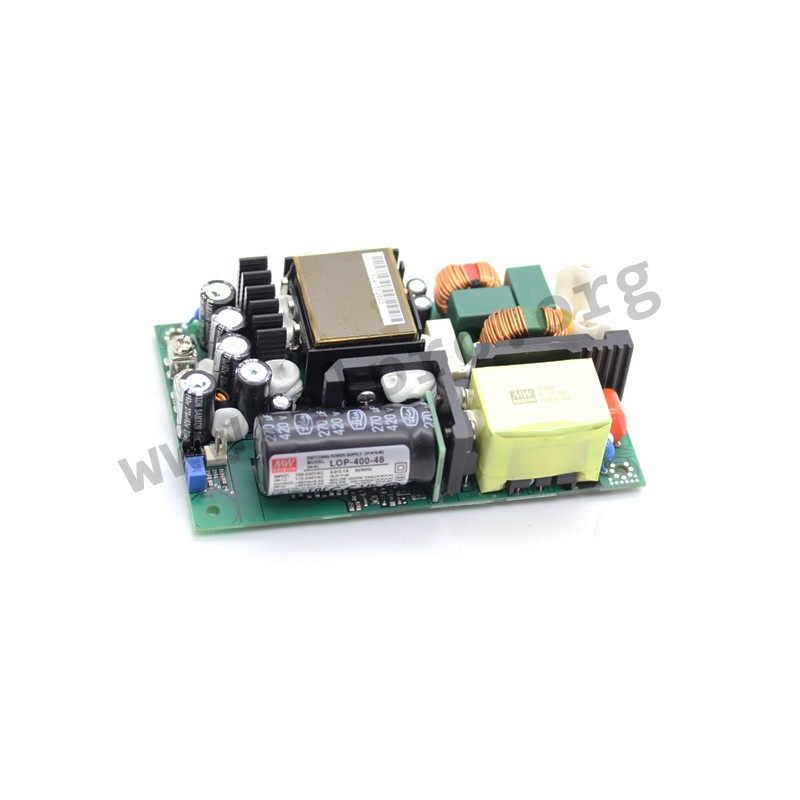

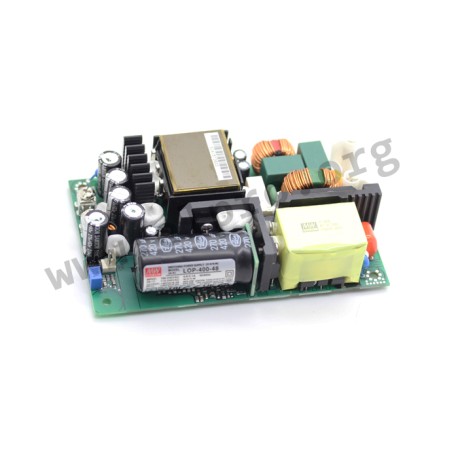

LOP-400-12

Mean Well power supply series LOP-400

Open frame switching power supplies with 400W (forced air), a low no-load power, an adjustable output voltage, protection class I/II and an auxiliary power output (12V/0,5A). These devices have a built-in active PFC function, are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature as well as short circuit. They have a compact size, a peak load capability of 150% and comply with EN62368-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN55014. We offer the following types of this Mean Well series: LOP-400-12, LOP-400-15, LOP-400-18, LOP-400-24, LOP-400-27, LOP-400-36, LOP-400-48 and LOP-400-54.

  • single output
  • output: 399,6 to 405W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • input current: 2,1A
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • connection type: plug-in connector
  • operating temperature: -40 to +80°C
  • dimensions: 127x76,2x27,5mm
  • weight: 390g
LOP-400-12, Mean Well switching power supplies, 400W (forced air), for medical technology, open frame (PCB), LOP-400 series

LOP-400-12

245458 LOP-400-12 LOP-400-12 Mean Well power supply series LOP-400. Open frame switching power supplies with 400W (forced air), a low no-load power, an adjustable output voltage, protection class I/II and an auxiliary power output (12V/0,5A). These devices have a built-in active PFC function, are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature as well as short circuit. They have a compact size, a peak load capability of 150% and comply with EN62368-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN55014. We offer the following types of this Mean Well series: LOP-400-12, LOP-400-15, LOP-400-18, LOP-400-24, LOP-400-27, LOP-400-36, LOP-400-48 and LOP-400-54. single output output: 399,6 to 405W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC input current: 2,1A maximal input inrush current: 80A no-load power: &lt;0,5W withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC connection type: plug-in connector operating temperature: -40 to +80°C dimensions: 127x76,2x27,5mm weight: 390g

Specifications

manufacturer
Manufacturer's name LOP-400-12
Output voltage [V] 12
Efficiency [%] 94
Output current [A] 33,3
Output power [W] 399,6
Ripple [mVp-p] 120
Data Sheet

Unit price

53,79 €

Volume discounts

Quantity Unit price
50 + 51,99 €

Stock: 12
Next incoming goods:
CW 05/2025
36 units

Further delivery:
CW 12/2025
