LOP-300-48

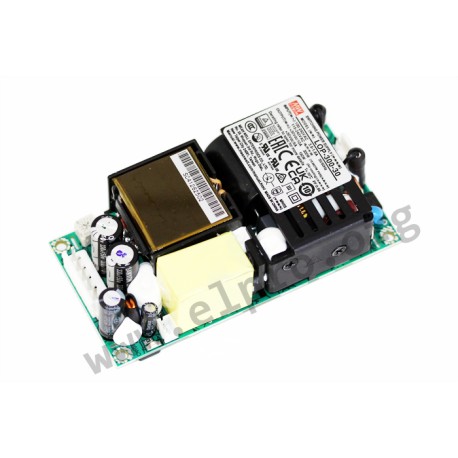

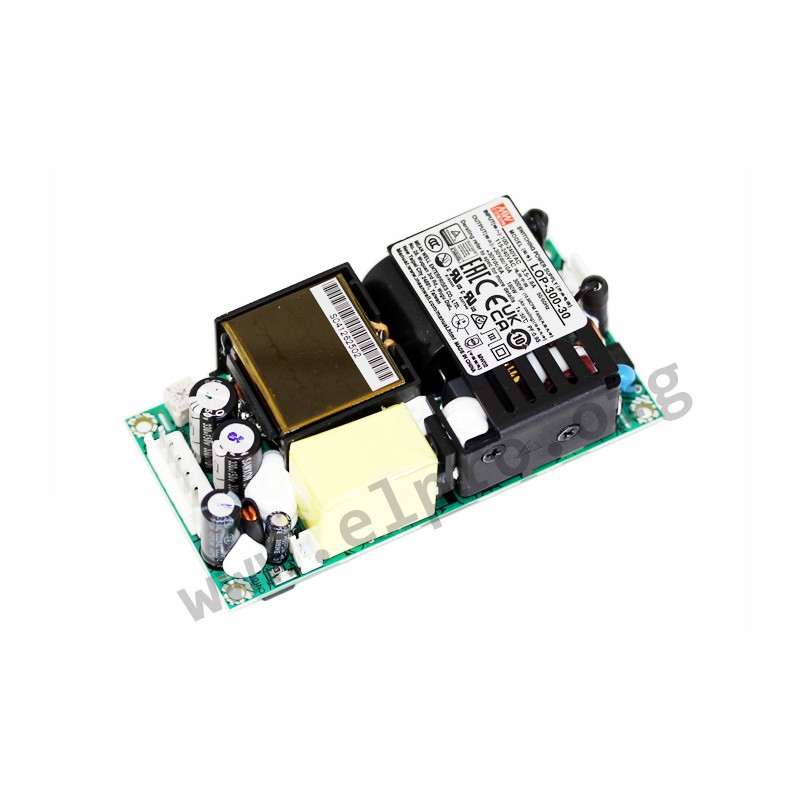

Mean Well power supply series LOP-300

Open frame switching power supplies with 300W (forced air), a low no-load power, a compact size (4"x2"), an adjustable output voltage and protection class I/II. These devices are suitable for medical technology applications (2xMOPP), have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a peak load capability of 150%, an auxiliary output for external fans (12V/0,5A) and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well series: LOP-300-12, LOP-300-15, LOP-300-18, LOP-300-24, LOP-300-27, LOP-300-30, LOP-300-36, LOP-300-48 and LOP-300-54.

  • single output
  • output: 299,7 to 302,4W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • input current: 1,8A
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 101,6x50,8x25,4mm
  • weight: 210g

LOP-300-48

245053 LOP-300-48 LOP-300-48 Mean Well power supply series LOP-300. Open frame switching power supplies with 300W (forced air), a low no-load power, a compact size (4"x2"), an adjustable output voltage and protection class I/II. These devices are suitable for medical technology applications (2xMOPP), have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a peak load capability of 150%, an auxiliary output for external fans (12V/0,5A) and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well series: LOP-300-12, LOP-300-15, LOP-300-18, LOP-300-24, LOP-300-27, LOP-300-30, LOP-300-36, LOP-300-48 and LOP-300-54. single output output: 299,7 to 302,4W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC input current: 1,8A maximal input inrush current: 80A no-load power: &lt;0,5W withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 101,6x50,8x25,4mm weight: 210g

Specifications

manufacturer
Manufacturer's name LOP-300-48
Output voltage [V] 48
Efficiency [%] 94
Output current [A] 6,3
Output power [W] 302,4
Ripple [mVp-p] 250
Data Sheet

Unit price

35,09 €

Volume discounts

Quantity Unit price
50 + 33,89 €

Stock: 0
Next incoming goods:
CW 49/2024
69 units


Further delivery:
CW 12/2025
