LOP-200-12

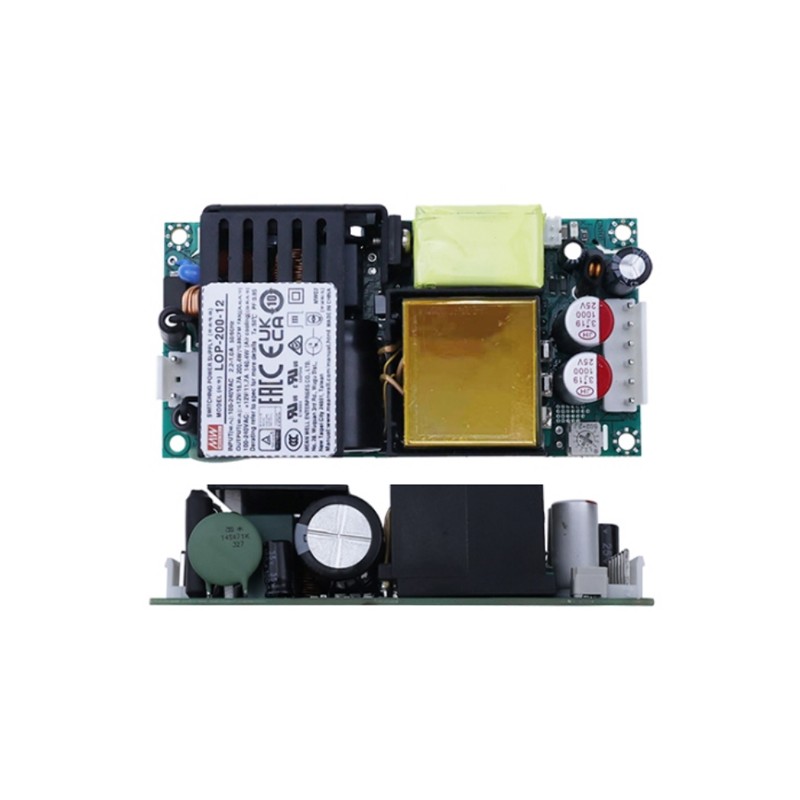

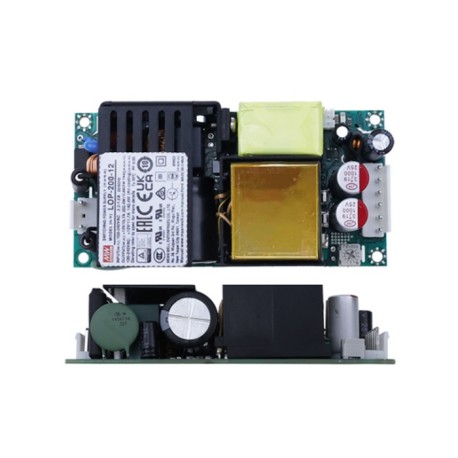

Mean Well power supply series LOP-200

Open frame switching power supplies with 200W (forced air), a compact size (4"x2"), a low no-load power, an adjustable output voltage and protection class I/II. These devices have a peak load capability of 150%, a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for medical technology applications (2xMOPP), have an auxiliary output for an external fan (12V/0,5A) and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well series: LOP-200-12, LOP-200-15, LOP-200-18, LOP-200-24, LOP-200-27, LOP-200-36, LOP-200-48 and LOP-200-54.

  • single output
  • output: 199,8 to 205,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • input current: 1A
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 101,6x50,8x25,4mm
  • weight: 210g
LOP-200-12, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series

LOP-200-12

245038 LOP-200-12 LOP-200-12 Mean Well power supply series LOP-200. Open frame switching power supplies with 200W (forced air), a compact size (4"x2"), a low no-load power, an adjustable output voltage and protection class I/II. These devices have a peak load capability of 150%, a built-in active PFC function and are protected&nbsp;against overload, overvoltage as well as short circuit. They are suitable for medical technology applications (2xMOPP), have an auxiliary output for an external fan (12V/0,5A) and comply with&nbsp;EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well&nbsp;series:&nbsp;LOP-200-12,&nbsp;LOP-200-15,&nbsp;LOP-200-18,&nbsp;LOP-200-24,&nbsp;LOP-200-27,&nbsp;LOP-200-36,&nbsp;LOP-200-48 and&nbsp;LOP-200-54. single output output: 199,8 to 205,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC input current: 1A maximal input inrush current: 80A no-load power: &lt;0,5W withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80&deg;C dimensions: 101,6x50,8x25,4mm weight: 210g

Specifications

manufacturer
Manufacturer's name LOP-200-12
Output voltage [V] 12
Efficiency [%] 93
Output current [A] 16,7
Output power [W] 200,4
Ripple [mVp-p] 120
Data Sheet

Unit price

33,19 €

Volume discounts

Quantity Unit price
50 + 30,89 €

Stock: 177
Further delivery:
CW 16/2025
