> Power supplies>Voltage converters>DC/DC converters, PCB mounting>Mean Well DC/DC step-up LED drivers, LDH-65 series>LDH-65-1050

Manufacturers

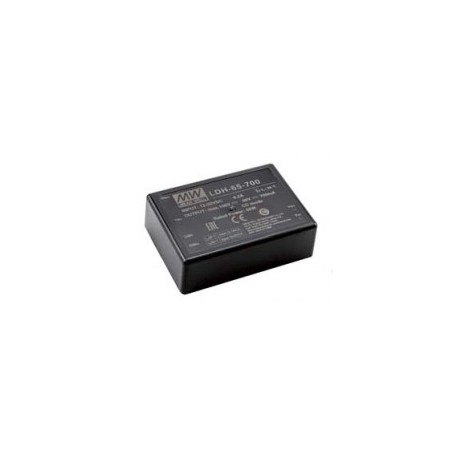

LDH-65-1050

Mean Well DC/DC step-up LED driver series LDH-65

DC/DC step-up converters with 65W, a wide range input and a constant current output. These devices are suitable for LED lighting applications, have a dimming function (0 to 10V DC, PWM) and are protected against short circuit as well as overvoltage. They have wires (LDH-65_W) or soldering pins (LDH_) and comply with EN55015, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Mean Well series: LDH-65-700, LDH-65-1050, LDH-65-1400, LDH-65-1750, LDH-65-700W, LDH-65-1050W, LDH-65-1400W and LDH-65-1750W.

  • output: 56 to 64,75W
  • output current tolerance: ±5%
  • operating temperature: -40 to +60°C
  • cable length LDH-65_W: 10cm
  • dimensions: 75x53x22,7mm
  • weight LDH_: 152g
  • weight LDH-65_W: 159g
LDH-65-1050, Mean Well DC/DC step-up LED drivers, LDH-65 series

LDH-65-1050

235310 LDH-65-1050 LDH-65-1050 4711287455563 Mean Well DC/DC step-up LED driver series LDH-65. DC/DC step-up converters with 65W, a wide range input and a constant current output. These devices are suitable for LED lighting applications, have a dimming function (0 to 10V DC, PWM) and are protected against short circuit as well as overvoltage. They have wires (LDH-65_W) or soldering pins (LDH_) and comply with EN55015, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Mean Well series: LDH-65-700, LDH-65-1050, LDH-65-1400, LDH-65-1750, LDH-65-700W, LDH-65-1050W, LDH-65-1400W and LDH-65-1750W. output: 56 to 64,75W output current tolerance: ±5% operating temperature: -40 to +60°C cable length LDH-65_W: 10cm dimensions: 75x53x22,7mm weight LDH_: 152g weight LDH-65_W: 159g

Specifications

manufacturer
Manufacturer's name LDH-65-1050
GTIN 4711287455563
Output voltage [V] 12,5...84
Input voltage range [V] 9,5...32
Efficiency [%] 95,5
Output current [A] 0,35
Data Sheet

Unit price

14,19 €

Volume discounts

Quantity Unit price
50 + 13,29 €

Stock: 5
Further delivery:
CW 12/2025
