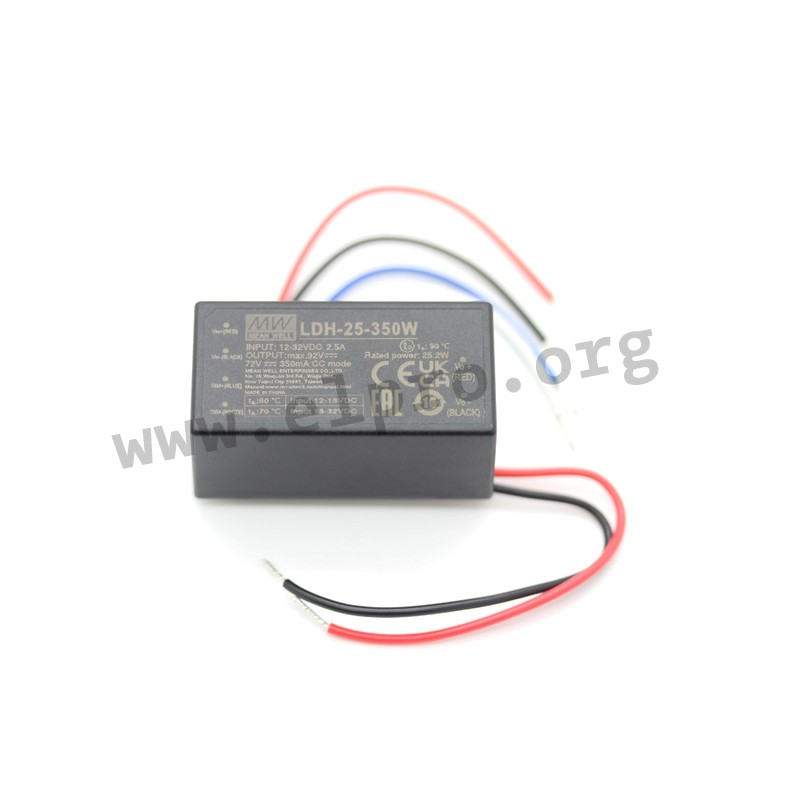

LDH-25-350W

Mean Well DC/DC step-up LED driver series LDH-25

DC/DC step-up converters with 25W, a constant current output and a wide input voltage range. These devices have a dimming function (0 to 10V DC, PWM), are suitable for LED lightning applications and protected against short circuit as well as overvoltage. They are available as versions with wires (LDH-25_W) or soldering pins (LDH_) and comply with EN55015, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Mean Well series: LDH-25-250, LDH-25-350, LDH-25-500, LDH-25-700, LDH-25-250W, LDH-25-350W, LDH-25-500W and LDH-25-700W.

  • output: 21 to 25,2W
  • output current tolerance: ±5%
  • operating temperature: -40 bis +70°C
  • cable length LDH-25-_W: 10cm
  • dimensions: 52,4x27,2x24mm
  • weight LDH-25_: 50g
  • weight LDH-25-_W: 57g

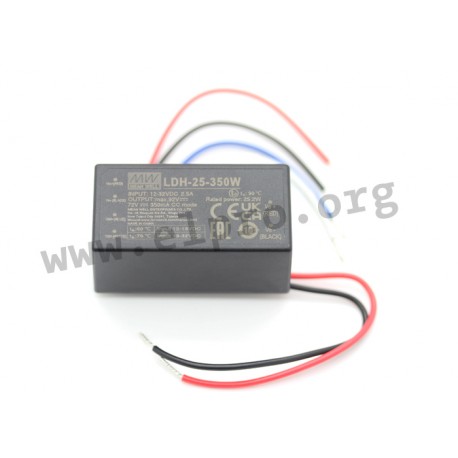

LDH-25-350W, Mean Well DC/DC step-up LED drivers, LDH-25 series

LDH-25-350W

235303 LDH-25-350W LDH-25-350W 4711287455136 Mean Well DC/DC step-up LED driver series LDH-25. DC/DC step-up converters with 25W, a constant current output and a wide input voltage range. These devices have a dimming function (0 to 10V DC, PWM), are suitable for LED lightning applications and protected against short circuit as well as overvoltage. They are available as versions with wires (LDH-25_W) or soldering pins (LDH_) and comply with EN55015, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Mean Well series: LDH-25-250, LDH-25-350, LDH-25-500, LDH-25-700, LDH-25-250W, LDH-25-350W, LDH-25-500W and LDH-25-700W. output: 21 to 25,2W output current tolerance: ±5% operating temperature: -40 bis +70°C cable length LDH-25-_W: 10cm dimensions: 52,4x27,2x24mm weight LDH-25_: 50g weight LDH-25-_W: 57g

Specifications

manufacturer
Manufacturer's name LDH-25-350W
GTIN 4711287455136
Output voltage [V] 12,5...72
Input voltage range [V] 9,5...32
Efficiency [%] 95
Output current [A] 0,35
Data Sheet

Unit price

8,19 €

Volume discounts

Quantity Unit price
50 + 7,59 €

Stock: 39
Next incoming goods:
CW 03/2025
100 units

Further delivery:
CW 12/2025
