LDDS-1000HW

Mean Well DC/DC LED driver series LDDS-H

DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output and a wide input voltage range. These devices have a remote ON/OFF control and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HW, LDDS-300HW, LDDS-350HW, LDDS-500HW, LDDS-700HW and LDDS-1000HW.

  • output current tolerance: ±5%
  • operating temperature: -40 to +55°C
  • connection: stranded wires
  • cable length: 10cm
  • dimensions: 47x12x7mm
  • weight: 9,5g

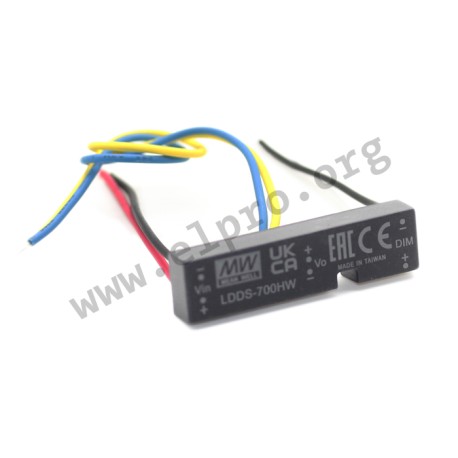

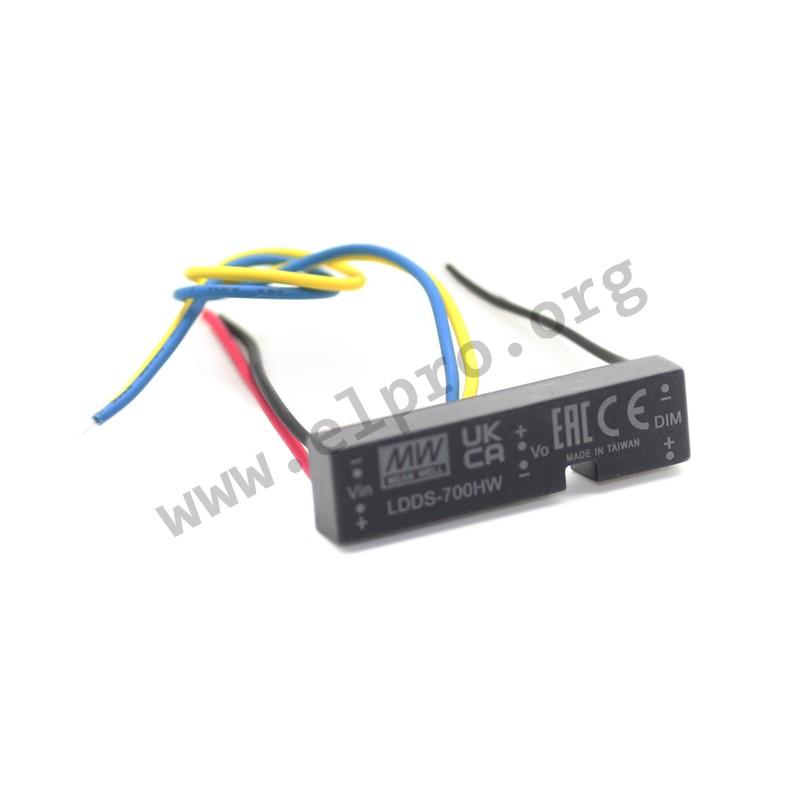

LDDS-1000HW, Mean Well DC/DC step-down LED drivers, LDDS-H series

LDDS-1000HW

237696 LDDS-1000HW LDDS-1000HW 4711287480572 Mean Well DC/DC LED driver series LDDS-H. DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output and a wide input voltage range. These devices have a remote ON/OFF control and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HW, LDDS-300HW, LDDS-350HW, LDDS-500HW, LDDS-700HW and LDDS-1000HW. output current tolerance: ±5% operating temperature: -40 to +55°C connection: stranded wires cable length: 10cm dimensions: 47x12x7mm weight: 9,5g

Specifications

manufacturer
Manufacturer's name LDDS-1000HW
GTIN 4711287480572
Input voltage range [V] 12...56
Efficiency [%] 96
Output current [A] 1
Ripple [mVp-p] 350
Output voltage range [V] 2...45
Data Sheet

Unit price

7,19 €

Volume discounts

Quantity Unit price
50 + 6,69 €

Stock: 5
Further delivery:
CW 18/2025
