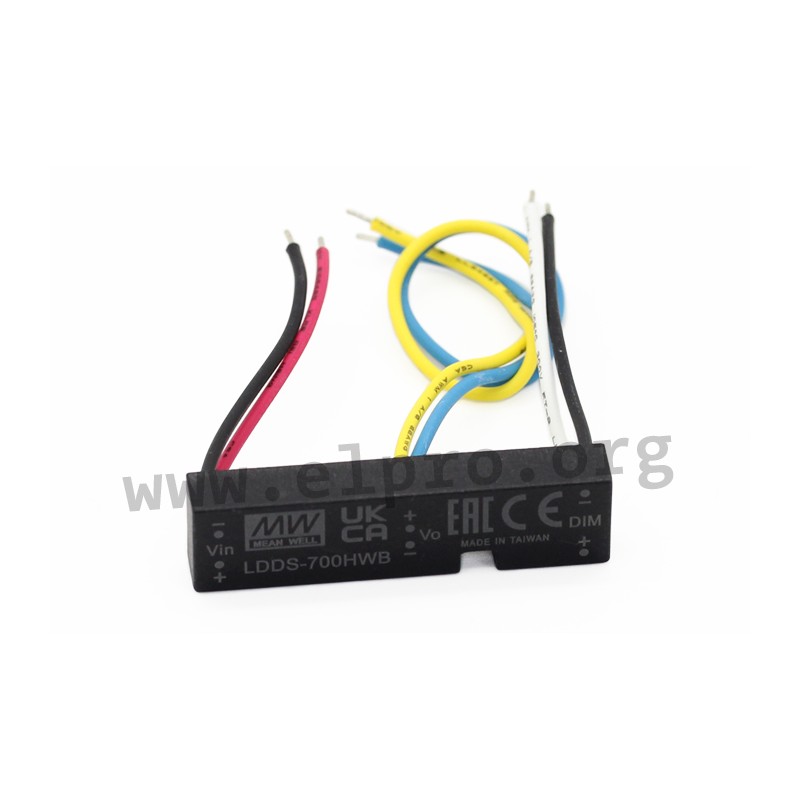

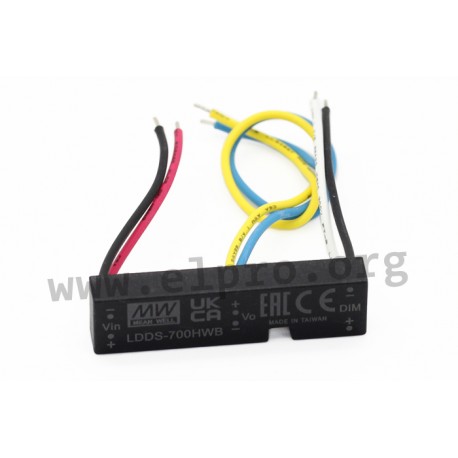

LDDS-700HWB

Mean Well DC/DC LED driver series LDDS-H

DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF function. These devices have a 3 in 1 dimming function and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HWB, LDDS-300HWB, LDDS-350HWB, LDDS-500HWB, LDDS-700HWB and LDDS-1000HWB.

  • output current tolerance: ±5%
  • operating temperature: -40 to +55°C
  • connection: stranded wires
  • cable length: 10cm
  • dimensions: 47x12x7mm
  • weight: 9,5g
LDDS-700HWB, Mean Well DC/DC step-down LED drivers, dimmable, LDDS-H series

LDDS-700HWB

237695 LDDS-700HWB LDDS-700HWB 4711287480565 Mean Well DC/DC LED driver series LDDS-H. DC/DC step-down LED drivers in a plastic housing (UL94V-0) with a constant current output, a wide input voltage range and a remote ON/OFF function. These devices have a 3 in 1 dimming function and are protected against overtemperature as well as short circuit. They are suitable for LED lightning applications and comply with EN55015. We offer the following types of this Mean Well series: LDDS-250HWB, LDDS-300HWB, LDDS-350HWB, LDDS-500HWB, LDDS-700HWB and LDDS-1000HWB. output current tolerance: ±5% operating temperature: -40 to +55°C connection: stranded wires cable length: 10cm dimensions: 47x12x7mm weight: 9,5g

Specifications

manufacturer
Manufacturer's name LDDS-700HWB
GTIN 4711287480565
Input voltage range [V] 12...56
Efficiency [%] 95
Output current [A] 0,7
Ripple [mVp-p] 350
Output voltage range [V] 2...45
Data Sheet

Unit price

8,69 €

Volume discounts

Quantity Unit price
50 + 8,09 €

Stock: 20
Further delivery:
CW 22/2025
