LCM-60KN

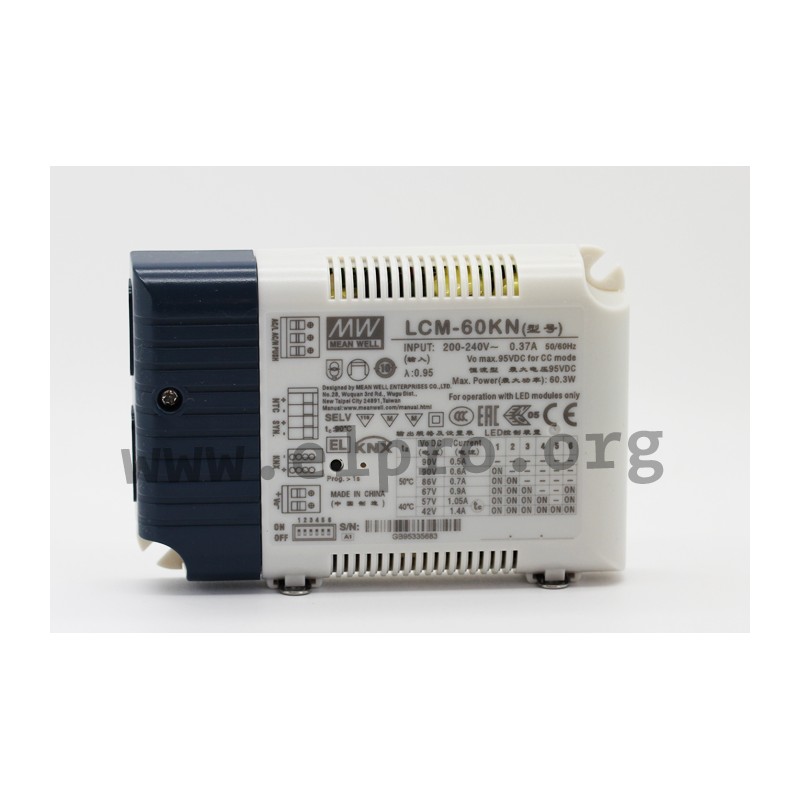

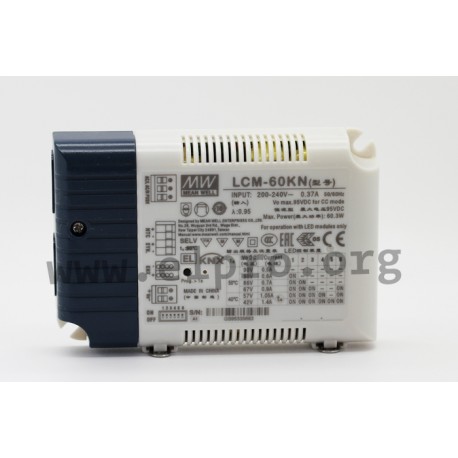

Mean Well LED driver series LCM-60KN

LED drivers in a plastic housing with 60W, a constant current, a low standby power consumption (<0,5W), a KNX interface and a KNX push button. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a DIL switch for selecting the constant current, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN55015 as well as EN61547. We offer the type LCM-60KN of this Mean Well series.

  • output: 60,3W
  • constant current selectable by DIL switch:
    2 to 90V (500mA)
    2 to 90V (600mA)
    2 to 86V (700mA)
    2 to 67V (900mA)
    2 to 57V (1050mA)
    2 to 42V (1400mA)
  • input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
LCM-60KN, Mean Well LED drivers, 60W, KNX standard, LCM-60KN series

LCM-60KN

113396 LCM-60KN LCM-60KN 4711287463292 Mean Well LED driver series LCM-60KN. LED drivers in a plastic housing with 60W, a constant current, a low standby power consumption (&lt;0,5W), a KNX interface and a KNX push button. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a DIL switch for selecting the constant current, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN55015 as well as EN61547. We offer the type LCM-60KN of this Mean Well series. output: 60,3W constant current selectable by DIL switch:2 to 90V (500mA)2 to 90V (600mA)2 to 86V (700mA)2 to 67V (900mA)2 to 57V (1050mA)2 to 42V (1400mA) input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC maximal input inrush current: 20A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +90°C weight: 240g

Specifications

manufacturer
Manufacturer's name LCM-60KN
GTIN 4711287463292
Efficiency [%] 91
Output power [W] 60,3
Ripple & noise [%] 5
Data Sheet

Unit price

45,59 €

Volume discounts

Quantity Unit price
50 + 44,09 €

Stock: 118
Further delivery:
CW 12/2025
