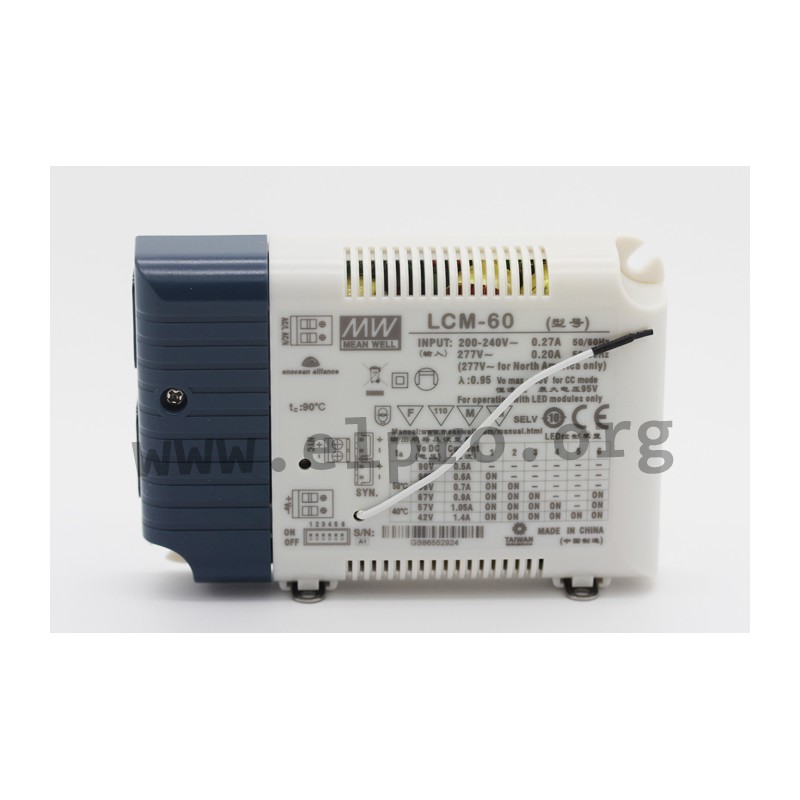

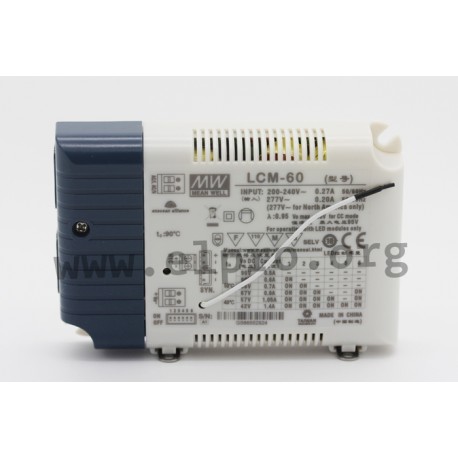

LCM-60EO

Mean Well LED driver series LCM-60

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II and 60W. These devices are protected against overtemperature, short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED lightning applications and have a dimmung function (dim-to-off) as well as a built-in active PFC function. We offer the following types of this Mean Well series: LCM-60, LCM-60DA and LCM-60DA2.

  • single output
  • output: 60,3W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
  • constant current selectable through a DIL switch:
    • 2 to 90V UA (600mA IA)
    • 2 to 86V UA (700mA IA)
    • 2 to 67V UA (900mA IA)
    • 2 to 57V UA (1050mA IA)
    • 2 to 42V UA (1400mA IA)

Matching synchronisation cables

LCM-60EO

LCM-60EO

111899 LCM-60EO LCM-60EO Mean Well LED driver series LCM-60. LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II and 60W. These devices are protected against overtemperature, short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED lightning applications and have a dimmung function (dim-to-off) as well as a built-in active PFC function. We offer the following types of this Mean Well series: LCM-60, LCM-60DA and LCM-60DA2. single output output: 60,3W input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC maximal input inrush current: 20A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +90°C weight: 240g constant current selectable through a DIL switch: 2 to 90V UA (600mA IA) 2 to 86V UA (700mA IA) 2 to 67V UA (900mA IA) 2 to 57V UA (1050mA IA) 2 to 42V UA (1400mA IA) Matching synchronisation cables

Specifications

manufacturer
Manufacturer's name LCM-60EO
Phase 2 phase
Efficiency [%] 92
Output power [W] 60,3
Ripple [mVp-p] 700

Unit price

48,49 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 500 units or
multiples of 500.
