LCM-40KN-AUX

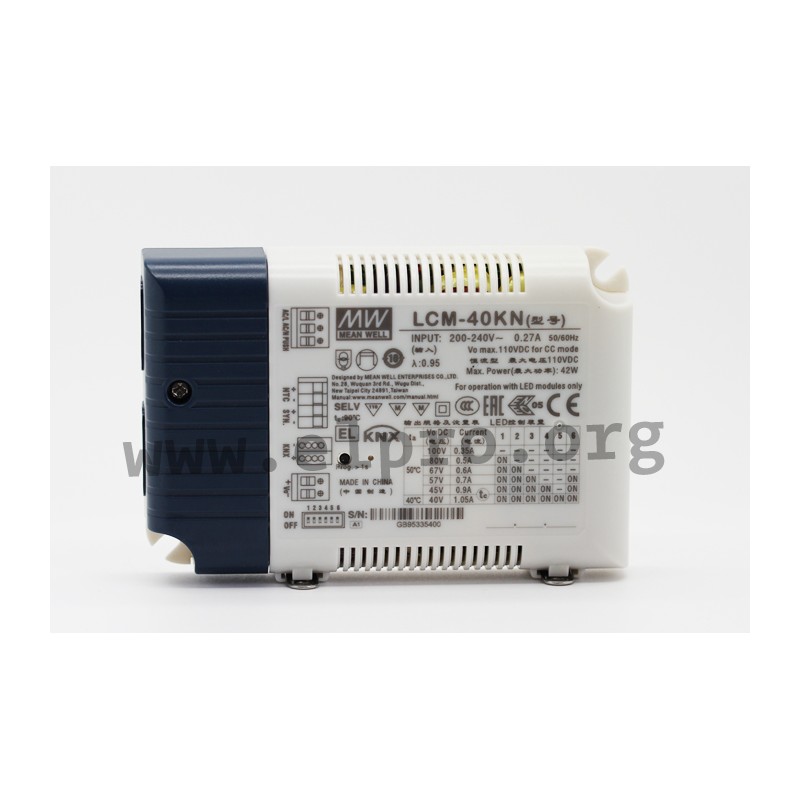

Mean Well LED driver series LCM-40KN

LED drivers in a plastic housing with 40W, a KNX interface, a constant current and a KNX push button. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, have a DIL switch for selecting the constant current and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN55015 as well as EN61547. We offer the type LCM-40KN of this Mean Well series.

  • output: 42W
  • constant current selectable by DIP switch:
    2 to 100V (350mA)
    2 to 80V (500mA)
    2 to 67V (600mA)
    2 to 57V (700mA)
    2 to 45V (900mA)
    2 to 40V (1050mA)
  • input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage (I/P-O/P): 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g

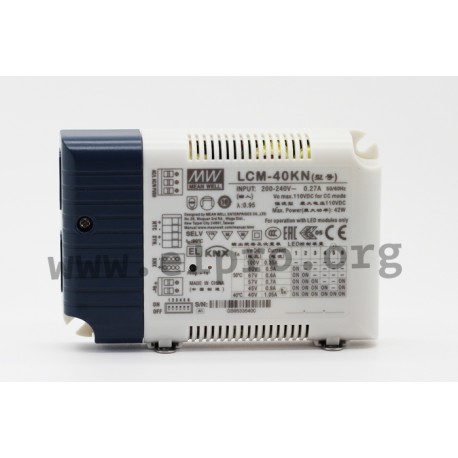

LCM-40KN, Mean Well LED drivers, 40W, KNX standard, LCM-40KN series

LCM-40KN-AUX

246584 LCM-40KN-AUX LCM-40KN-AUX Mean Well LED driver series LCM-40KN. LED drivers in a plastic housing with 40W, a KNX interface, a constant current and a KNX push button. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, have a DIL switch for selecting the constant current and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN55015 as well as EN61547. We offer the type LCM-40KN of this Mean Well series. output: 42W constant current selectable by DIP switch:2 to 100V (350mA)2 to 80V (500mA)2 to 67V (600mA)2 to 57V (700mA)2 to 45V (900mA)2 to 40V (1050mA) input voltage: 180 to 295V AC (47 to 63Hz), 220 to 417V DC maximal input inrush current: 20A withstand voltage (I/P-O/P): 3750V AC operating temperature: -30 to +90°C weight: 240g

Specifications

manufacturer
Manufacturer's name LCM-40KN-AUX
Efficiency [%] 90
Output power [W] 42
Ripple & noise [%] 5
Data Sheet

Unit price

44,29 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 500 units or
multiples of 500.
