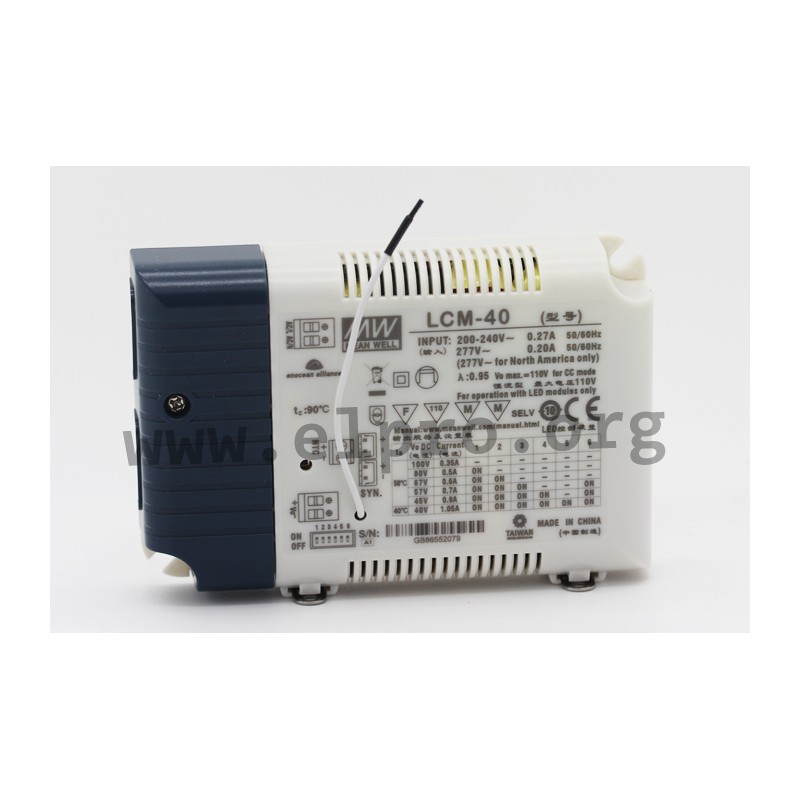

LCM-40EO

Mean Well LED driver series LCM-40

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II, 40W and a DALI (LCM-40DA) resp. a DALI 2.0 interface (LCM-40DA2). These devices are protected against overtemperature, overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (dim-to-off) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-40, LCM-40DA and LCM-40DA2.

  • single output
  • output: 42W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
  • constant current selectable through a DIL switch:
    • 2 to 100V UA (350mA IA)
    • 2 to 80V UA (500mA IA)
    • 2 to 67V UA (600mA IA)
    • 2 to 57V UA (700mA IA)
    • 2 to 45V UA (900mA IA)
    • 2 to 40V UA (1050mA IA)

Matching synchronisation cables

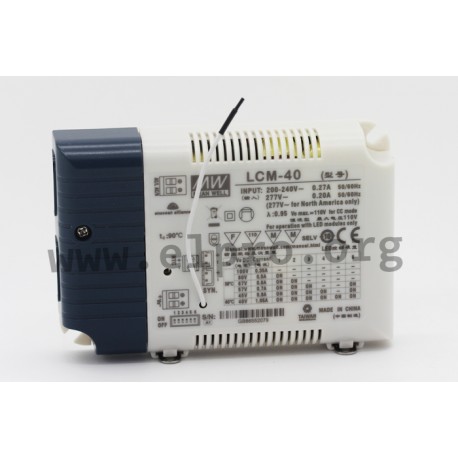

LCM-40EO

LCM-40EO

111898 LCM-40EO LCM-40EO Mean Well LED driver series LCM-40. LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II, 40W and a DALI (LCM-40DA) resp. a DALI 2.0 interface (LCM-40DA2). These devices are protected against overtemperature, overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (dim-to-off) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-40, LCM-40DA and LCM-40DA2. single output output: 42W input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC maximal input inrush current: 20A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +90°C weight: 240g constant current selectable through a DIL switch: 2 to 100V UA (350mA IA) 2 to 80V UA (500mA IA) 2 to 67V UA (600mA IA) 2 to 57V UA (700mA IA) 2 to 45V UA (900mA IA) 2 to 40V UA (1050mA IA) Matching synchronisation cables

Specifications

manufacturer
Manufacturer's name LCM-40EO
Phase 2 phase
Efficiency [%] 91
Output power [W] 42
Ripple [mVp-p] 700
Data Sheet

Unit price

32,39 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 500 units or
multiples of 500.
