LCM-40SVA

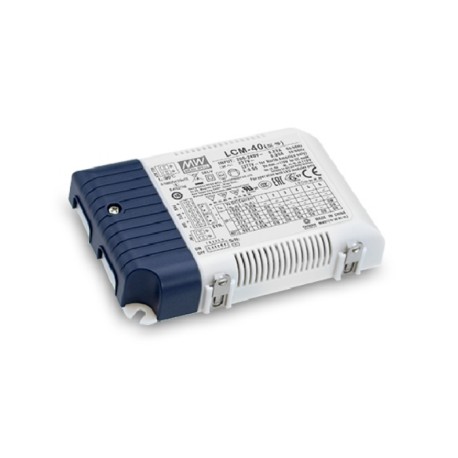

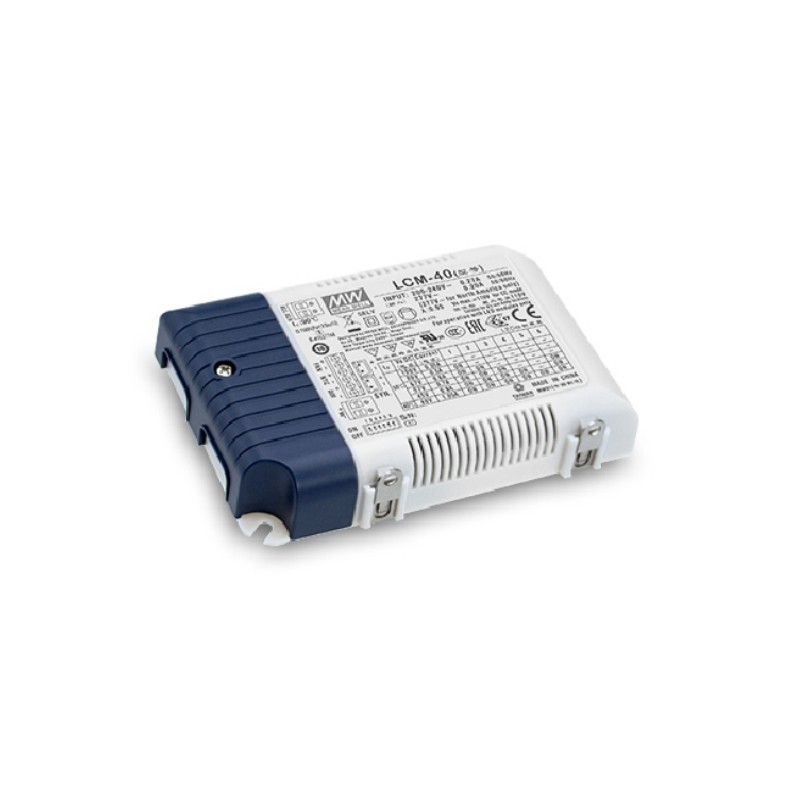

Mean Well LED driver series LCM-40 IoT

LED drivers in a plastic housing with 40W, a constant current (selectable via DIL switch), protection class II and an auxiliary output (LCM-40_-AUX). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a Casambi (LCM-40BLE_), Tuya (LCM-40TY1_) or Silvair bluetooth interface (LCM-40SVA) and comply with EN61347-2-13, EN61347-1 as well as EN55015. We offer the following types of this Mean Well series: LCM-40TY1, LCM-40SVA, LCM-40BLE-AUX, LCM-40TY1-AUX and LCM-40SVA-AUX.

  • single output
  • output: 42W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • leakage current: 0,5mA
  • withstand voltage I/P-O/P: 3750V AC
  • dimensions: 105x68x23mm
  • weight: 240g
LCM-40SVA, Mean Well LED drivers, 40W, constant current, Casambi/Tuya/Silvair bluetooth interface, LCM-40 IoT series

LCM-40SVA

244900 LCM-40SVA LCM-40SVA Mean Well LED driver series LCM-40 IoT. LED drivers in a plastic housing with 40W, a constant current (selectable via DIL switch), protection class II and an auxiliary output (LCM-40_-AUX). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a Casambi (LCM-40BLE_), Tuya (LCM-40TY1_) or Silvair bluetooth interface (LCM-40SVA) and comply with EN61347-2-13, EN61347-1 as well as EN55015. We offer the following types of this Mean Well series: LCM-40TY1, LCM-40SVA, LCM-40BLE-AUX, LCM-40TY1-AUX and LCM-40SVA-AUX. single output output: 42W input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC maximal input inrush current: 20A leakage current: 0,5mA withstand voltage I/P-O/P: 3750V AC dimensions: 105x68x23mm weight: 240g

Specifications

manufacturer
Manufacturer's name LCM-40SVA
Output voltage [V] 2...100
Efficiency [%] 90
Output current [A] 0,35...1,05
Output power [W] 42
Data Sheet

Unit price

74,29 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 540 units or
multiples of 540.
