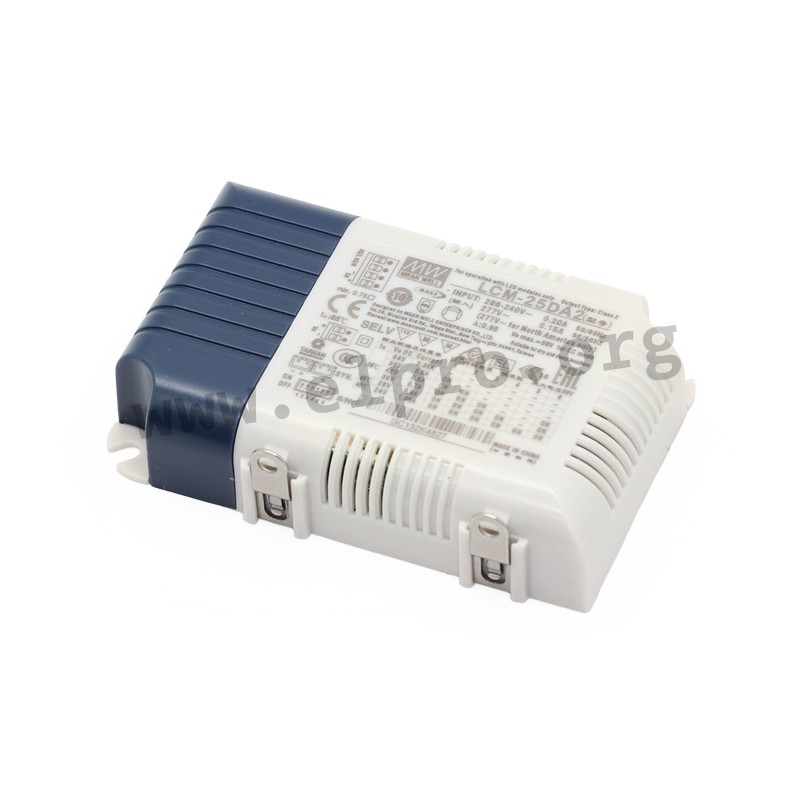

LCM-25DA2

Mean Well LED driver series LCM-25

LED switching power supplies in a plastic case (IP20) with a constant current (selectable through a DIL switch), a DALI (LCM-25DA) resp. a DALI 2.0 interface (LCM-25DA2), 25W and protection class II. These devices are protected against overvoltage, short circuit, overload (auto recovery) as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (0 to 10V, PWM) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-25, LCM-25DA and LCM-25DA2.

  • single output
  • output: 18,9 to 25,2W
  • input voltage: 180 to 277V AC (47 to 63Hz), 254 to 392V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +85°C
  • weight: 160g
  • constant current selectable through a DIL switch:
    • 6 to 54V UA (350mA IA)
    • 6 to 50V UA (500mA IA)
    • 6 to 42V UA (600mA IA)
    • 6 to 36V UA (700mA IA)
    • 6 to 28V UA (900mA IA)
    • 6 to 24V UA (1050mA IA)

Matching synchronisation cables

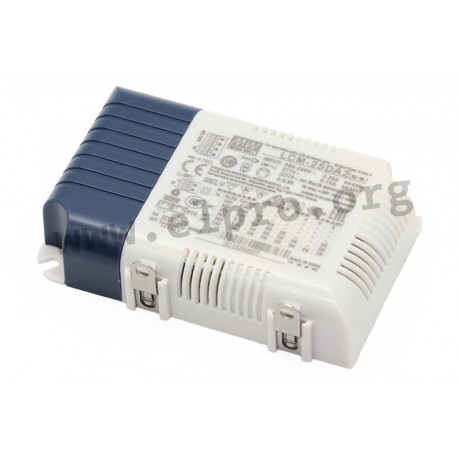

LCM-25DA2, Mean Well LED drivers, 25W, IP20, constant current, dimmable, DALI interface, LCM-25 series

LCM-25DA2

236162 LCM-25DA2 LCM-25DA2 4711287461342 Mean Well LED driver series LCM-25. LED switching power supplies in a plastic case (IP20) with a constant current (selectable through a DIL switch), a DALI (LCM-25DA) resp. a DALI 2.0 interface (LCM-25DA2), 25W and protection class II. These devices are protected against overvoltage, short circuit, overload (auto recovery) as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (0 to 10V, PWM) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-25, LCM-25DA and LCM-25DA2. single output output: 18,9 to 25,2W input voltage: 180 to 277V AC (47 to 63Hz), 254 to 392V DC maximal input inrush current: 20A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +85°C weight: 160g constant current selectable through a DIL switch: 6 to 54V UA (350mA IA) 6 to 50V UA (500mA IA) 6 to 42V UA (600mA IA) 6 to 36V UA (700mA IA) 6 to 28V UA (900mA IA) 6 to 24V UA (1050mA IA) Matching synchronisation cables

Specifications

manufacturer
Manufacturer's name LCM-25DA2
GTIN 4711287461342
Phase 2 phase
Efficiency [%] 86
Output power [W] 25,2
Ripple [mVp-p] 400
Data Sheet

Unit price

25,69 €

Volume discounts

Quantity Unit price
50 + 24,09 €

Stock: 474
Further delivery:
CW 16/2025
