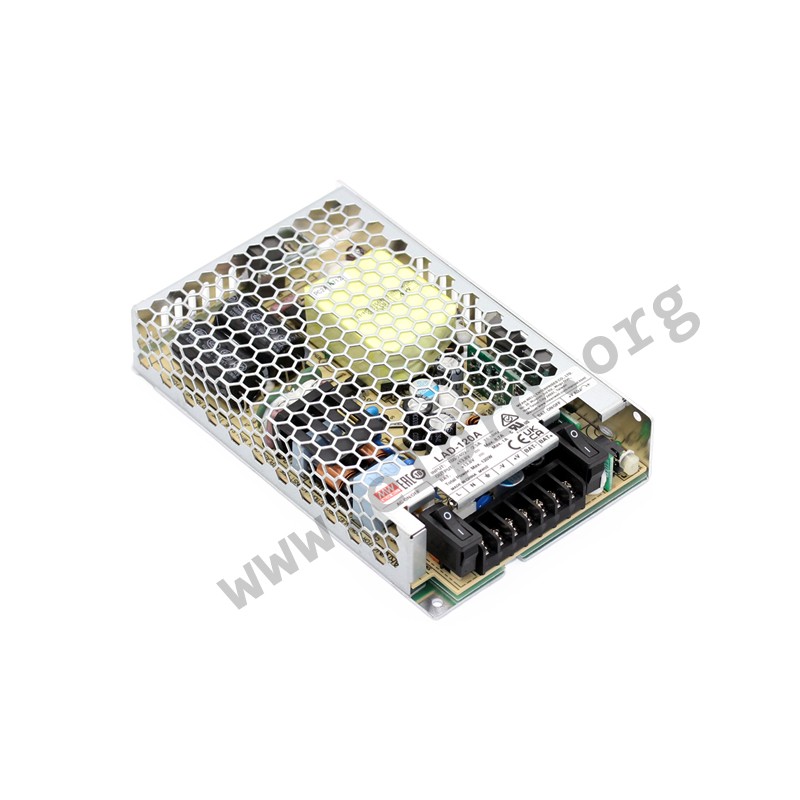

LAD-120A

Mean Well battery charger series LAD-120

Switching power supplies in an enclosed housing with 120W, a built-in battery charger (UPS function), two output channels and a universal input. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, voltage reversal, overtemperature as well as short circuit. They have an adjustable output voltage for CH1 (-20%,~+5%) and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: LAD-120A, LAD-120B, LAD-120C and LAD-120D.

  • dual output
  • output: 120 to 121,99W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <0,5mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • dimensions: 159x97x30mm
  • weight: 420g

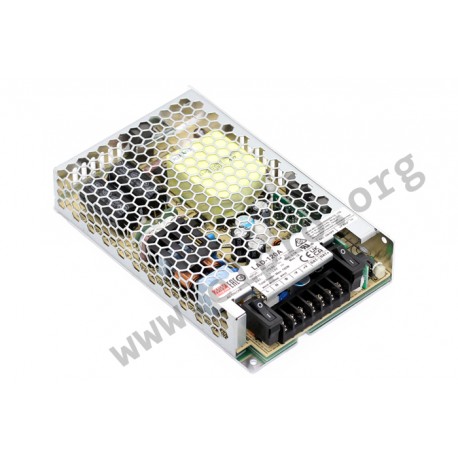

LAD-120A, Mean Well battery chargers, 120W, UPS function, dual output, LAD-120 series

LAD-120A

242183 LAD-120A LAD-120A 4711287486444 Mean Well battery charger series LAD-120. Switching power supplies in an enclosed housing with 120W, a built-in battery charger (UPS function), two output channels and a universal input. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload, overvoltage, voltage reversal, overtemperature as well as short circuit. They have an adjustable output voltage for CH1 (-20%,~+5%) and comply with EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: LAD-120A, LAD-120B, LAD-120C and LAD-120D. dual output output: 120 to 121,99W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A leakage current: &lt;0,5mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C dimensions: 159x97x30mm weight: 420g

Specifications

manufacturer
Manufacturer's name LAD-120A
GTIN 4711287486444
Output voltage [V] 13,8
Efficiency [%] 86
Output current [A] 7,7
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 120
Data Sheet

Unit price

32,39 €

Volume discounts

Quantity Unit price
50 + 30,09 €

Stock: 21
Next incoming goods:
CW 51/2024
60 units

Further delivery:
CW 12/2025
