KNX-40E-1280

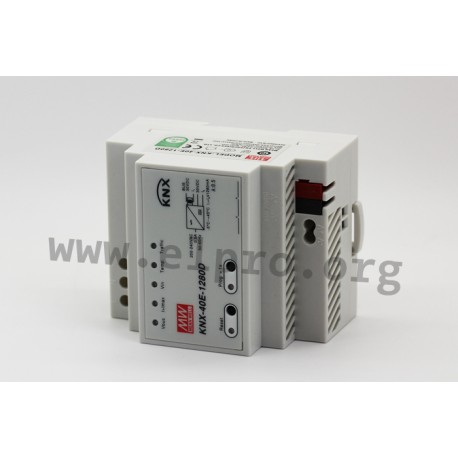

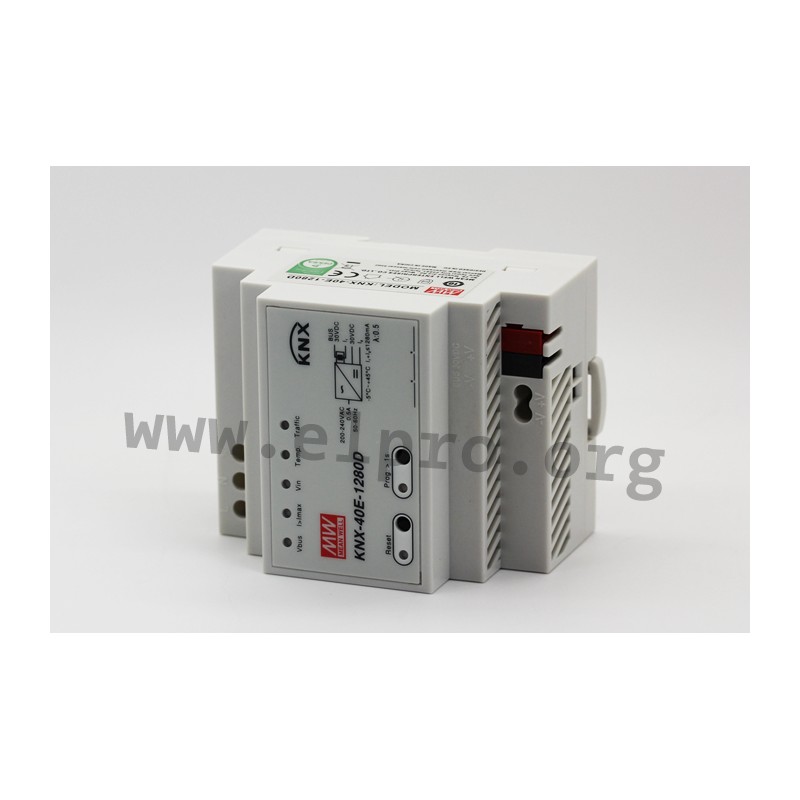

Mean Well KNX power supply series KNX-40E

KNX switching power supplies in a DIN rail housing (4SU / 72mm) with 40W, insulation class I, an LED indicator, a universal input and screw terminals (touch guard). These SELV compliant devices have an integrated choke and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design, are suitable for KNX applications and comply with EN61558-1, EN61558-2-16, EN50178, EN50491-3, EN61000-3-2 as well as EN61000-3-3. We offer the type KNX-40E-1280 as well as the power supplies KNX-40E-1280D with a diagnostic function of this Mean Well series.

  • single output
  • output: 38,4W
  • input voltage: 180 to 264V AC (47 to 63Hz), 176 to 280V DC
  • maximal input inrush current: 60A
  • leakage current: <1mA
  • overload protection: 205 to 235%
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2000V AC
  • operating temperature: -30 to +70°C
  • weight: 328g
KNX-40E-1280, MeanWell, Mean Well DIN rail switching power supplies, 40W, KNX standard, KNX-40E series

KNX-40E-1280

113292 KNX-40E-1280 KNX-40E-1280 4711232760100 Mean Well&nbsp;KNX power supply series KNX-40E. KNX switching power supplies in a DIN rail housing (4SU / 72mm) with 40W, insulation class I, an LED indicator,&nbsp;a&nbsp;universal input and&nbsp;screw terminals (touch guard). These&nbsp;SELV compliant devices have an integrated choke and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design, are suitable for KNX applications and comply with&nbsp;EN61558-1, EN61558-2-16, EN50178, EN50491-3, EN61000-3-2 as well as EN61000-3-3. We offer the type&nbsp;KNX-40E-1280 as well as the&nbsp;power supplies&nbsp;KNX-40E-1280D with a diagnostic function of this Mean Well series. single output output: 38,4W input voltage: 180 to 264V AC (47 to 63Hz), 176 to 280V DC maximal input inrush current: 60A leakage current: &lt;1mA overload protection: 205 to 235% withstand voltage I/P-O/P: 4200V AC withstand voltage I/P-FG: 2000V AC operating temperature: -30 to +70&deg;C weight: 328g

Specifications

manufacturer
Manufacturer's name KNX-40E-1280
GTIN 4711232760100
Output voltage [V] 30
Efficiency [%] 86
Output current [A] 1,28
Output power [W] 38,4
Ripple [mVp-p] 100
Data Sheet

Unit price

77,19 €

Volume discounts

Quantity Unit price
50 + 75,29 €

Stock: 354
Next incoming goods:
CW 04/2025
160 units

Further delivery:
CW 16/2025
