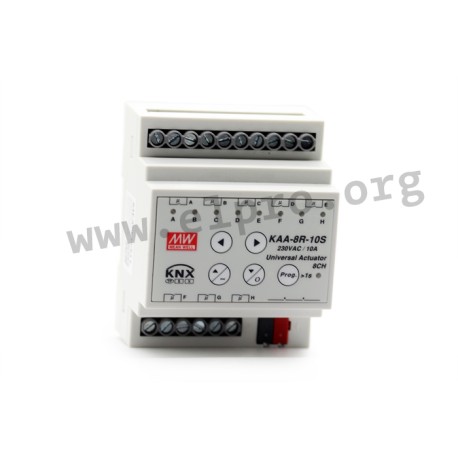

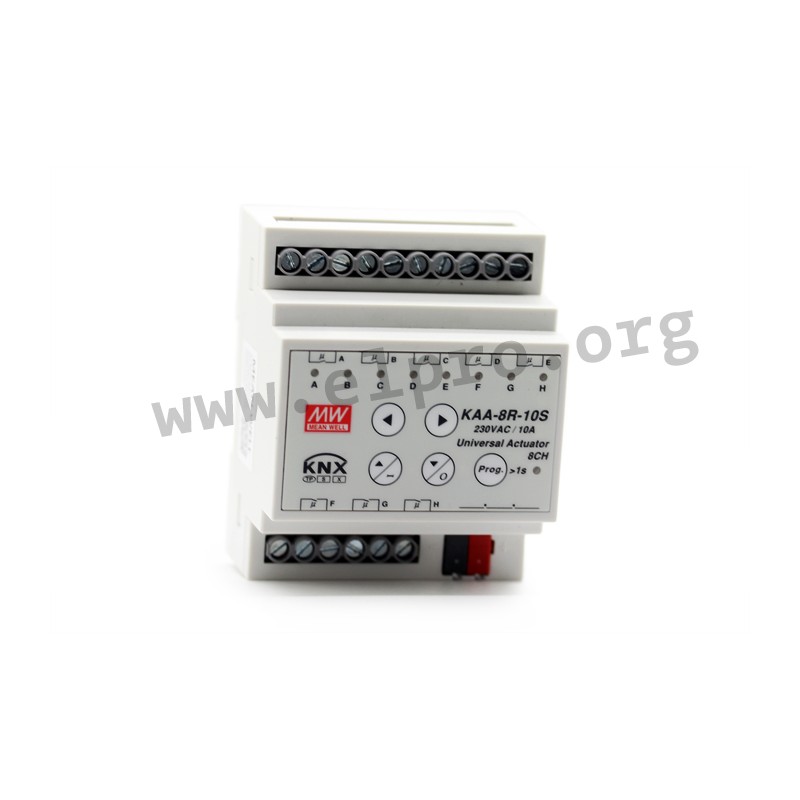

KAA-8R-10S

Mean Well KNX universal actuator series KAA-8R and KAA-8R-S

KNX universal actuators in a compact and enclosed a housing (IP20) with up to 8 channels for domotics applications like lighting switching, ventilation, planned shutter/blind and heating control. These actuators dont require an external power supply and can be mounted directly on a DIN rail. They are suitable for resistive, inductive or capacitive loads and have various programmable time and scene functions. Furthermore, they are programmable with the standard software ETS or manually through the push buttons. We offer the type KAA-8R of this Mean Well series as well as the actuators KAA-8R-16S and KAA-8R-10S with a data secure function.

  • KNX BUS voltage: 21 to 31V
  • maximal current consumption: 6mA
  • maximal power consumption: 180mW
  • channels: 8
  • output current KAA-8R_: 16A per Channel
  • output current KAA-8R-10_: 10A per Channel
  • operating temperature: -30 to +45°C
  • weight: 312g
KAA-8R-10S, Mean Well KNX universal actuators, KNX standard, KAA-8R and KAA-8R-S series

KAA-8R-10S

241415 KAA-8R-10S KAA-8R-10S 4711232760148 Mean Well KNX universal actuator series KAA-8R and KAA-8R-S. KNX universal actuators in a compact and enclosed a housing (IP20) with up to 8 channels for domotics applications like lighting switching, ventilation, planned shutter/blind and heating control. These actuators dont require an external power supply and can be mounted directly on a DIN rail. They are suitable for resistive, inductive or capacitive loads and have various programmable time and scene functions. Furthermore, they are programmable with the standard software ETS or manually through the push buttons. We offer the type KAA-8R of this Mean Well series as well as the actuators KAA-8R-16S and KAA-8R-10S with a data secure function. KNX BUS voltage: 21 to 31V maximal current consumption: 6mA maximal power consumption: 180mW channels: 8 output current KAA-8R_: 16A per Channel output current KAA-8R-10_: 10A per Channel operating temperature: -30 to +45°C weight: 312g

Specifications

manufacturer
Manufacturer's name KAA-8R-10S
GTIN 4711232760148
Data Sheet

Unit price

108,59 €

Volume discounts

Quantity Unit price
50 + 106,39 €

Stock: 0
Next incoming goods:
CW 03/2025
39 units

Further delivery:
CW 12/2025
