> Power supplies>Power supplies>Switching power supplies, enclosed>Mean Well AC/DC converters, 45W, PCB, IRM-45 series>IRM-45-48ST

Manufacturers

IRM-45-48ST

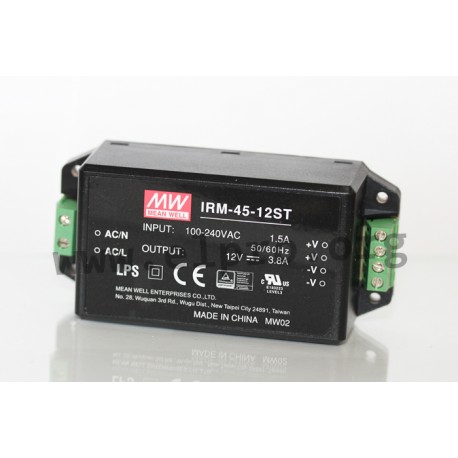

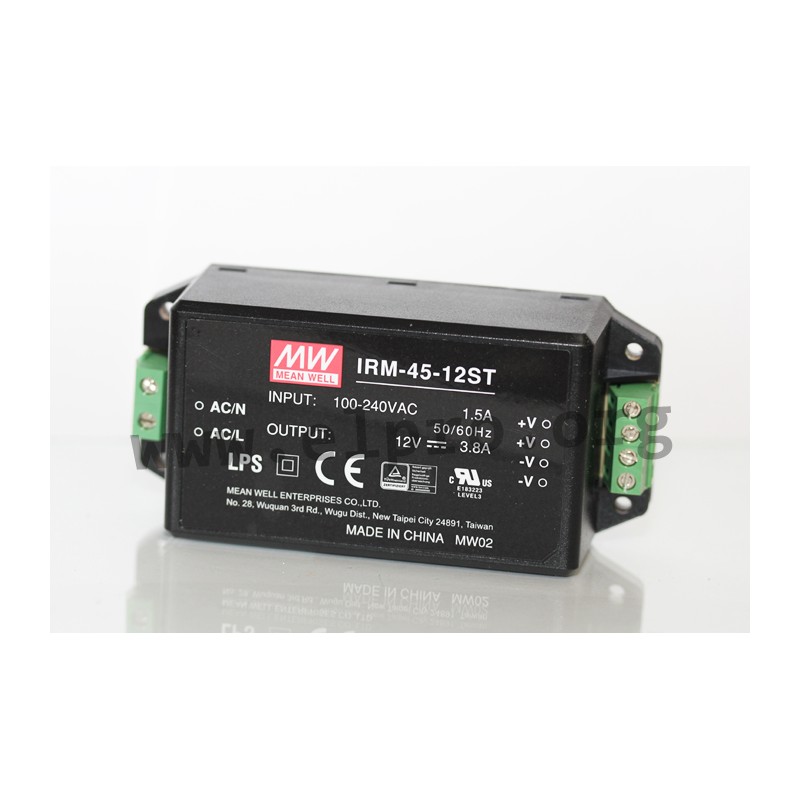

Mean Well AC/DC converter series IRM-45

Switching power supplies in an enclosed housing with 45W, a universal input, insulation class II and screw terminals (IRM-45-_ST). These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overvoltage. They have a low no-load power and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-45-5, IRM-45-12, IRM-45-15, IRM-45-24, IRM-45-48, IRM-45-5ST, IRM-45-12ST, IRM-45-15ST, IRM-45-24ST and IRM-45-48ST.

  • single output
  • output: 40 to 45,6W
  • input voltage: 85 to 305V AC (47 to 440Hz)
  • maximal input inrush current: 60A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • weight IRM-45_: 195g
  • weight IRM-45-_ST: 228g
Mean Well IRM-45-_ST series

IRM-45-48ST

104832 IRM-45-48ST IRM-45-48ST 4711287424088 Mean Well AC/DC converter series IRM-45. Switching power supplies in an enclosed housing with 45W, a universal input, insulation class II and screw terminals (IRM-45-_ST). These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overvoltage. They have a low no-load power and&nbsp;comply with&nbsp;UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;IRM-45-5, IRM-45-12, IRM-45-15, IRM-45-24, IRM-45-48, IRM-45-5ST, IRM-45-12ST, IRM-45-15ST, IRM-45-24ST and IRM-45-48ST. single output output: 40 to 45,6W input voltage: 85 to 305V AC (47 to 440Hz) maximal input inrush current: 60A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70&deg;C weight IRM-45_: 195g weight IRM-45-_ST: 228g

Specifications

manufacturer
Manufacturer's name IRM-45-48ST
GTIN 4711287424088
Output voltage [V] 48
Efficiency [%] 90,5
Output current [A] 0...0,94
Output voltage tolerance: [%] 2,5
Output power [W] 45,12
Ripple [mVp-p] 300
Data Sheet

Unit price

14,39 €

Volume discounts

Quantity Unit price
50 + 13,59 €

Stock: 8
Further delivery:
CW 09/2025
