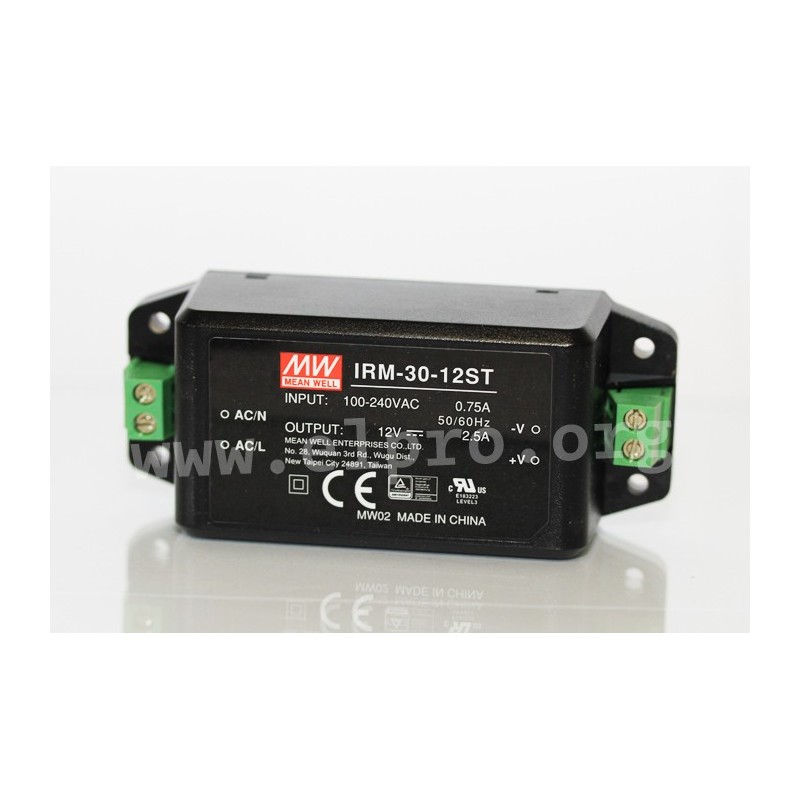

IRM-30-12ST

Mean Well AC/DC converter series IRM-30

Switching power supplies in an enclosed housing with 30W, a universal input, screw terminals (IRM-30-_ST), a low no-load power and insulation class II. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1 sowie EN55032 class B. We offer the following types of this Mean Well series: IRM-30-5, IRM-30-12, IRM-30-15, IRM-30-24, IRM-30-48, IRM-30-5ST, IRM-30-12ST, IRM-30-15ST, IRM-30-24ST and IRM-30-48ST.

  • single output
  • output: 30 to 31,2W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 45A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • weight IRM-30_: 109g
  • weight IRM-30-_ST: 120g

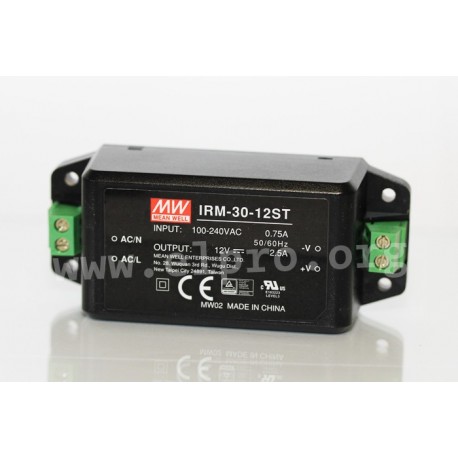

Mean Well IRM-30_ST series

IRM-30-12ST

45050 IRM-30-12ST IRM-30-12ST 4711287423951 Mean Well AC/DC converter series IRM-30. Switching power supplies in an enclosed housing with 30W, a universal input, screw terminals (IRM-30-_ST), a low no-load power and insulation class II. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1 sowie EN55032 class B. We offer the following types of this Mean Well series: IRM-30-5, IRM-30-12, IRM-30-15, IRM-30-24, IRM-30-48, IRM-30-5ST, IRM-30-12ST, IRM-30-15ST, IRM-30-24ST and IRM-30-48ST. single output output: 30 to 31,2W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 45A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C weight IRM-30_: 109g weight IRM-30-_ST: 120g

Specifications

manufacturer
Manufacturer's name IRM-30-12ST
GTIN 4711287423951
Output voltage [V] 12
Efficiency [%] 88
Output current range [A] 0...2,5
Output voltage tolerance: [%] 2,5
Output power [W] 30
Ripple [mVp-p] 150
Data Sheet

Unit price

10,69 €

Volume discounts

Quantity Unit price
50 + 10,09 €

Stock: 1560
Further delivery:
CW 16/2025
