IRM-20-5

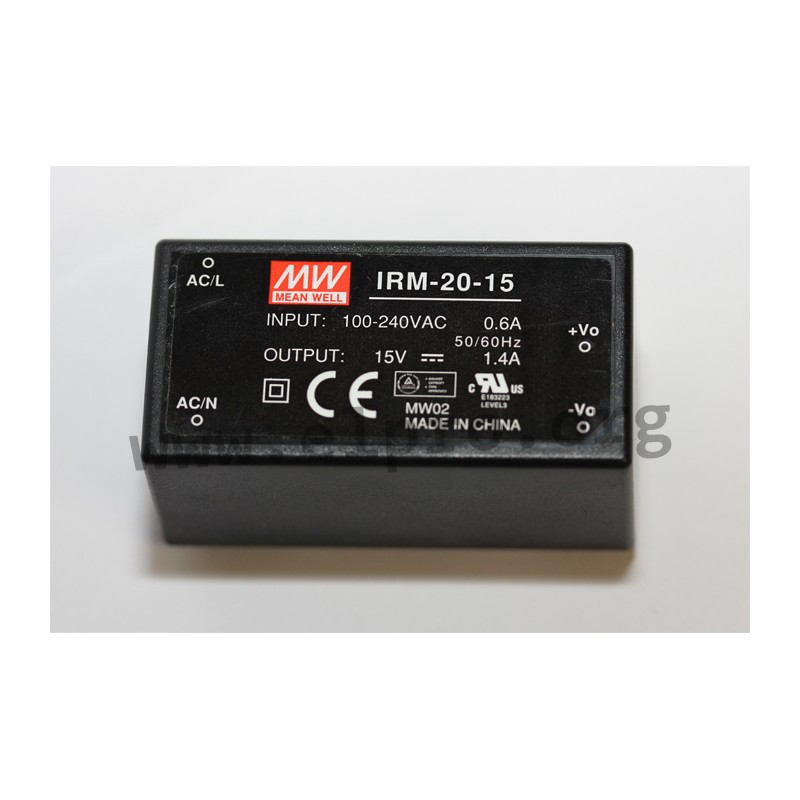

Mean Well power supply series IRM-20

Switching power supplies in an enclosed housing (PCB) with 20W, insulation class II, a low no-load power and a universal input. These devices have a fanless design and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-20-3.3, IRM-20-5, IRM-20-12, IRM-20-15 and IRM-20-24.

  • single output
  • output: 14,85 to 21,6W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 40A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 50g

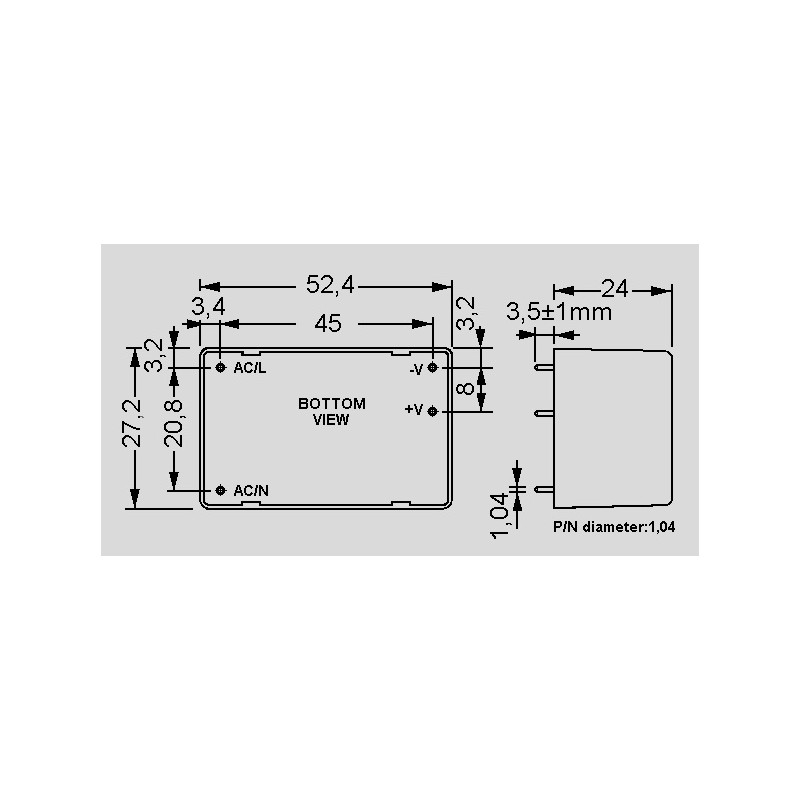

dimensions

IRM-20-5

41571 IRM-20-5 IRM-20-5 4711287423845 Mean Well power supply series IRM-20. Switching power supplies in an enclosed housing (PCB) with 20W, insulation class II, a low no-load power and a universal input. These devices have a fanless design and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-20-3.3, IRM-20-5, IRM-20-12, IRM-20-15 and IRM-20-24. single output output: 14,85 to 21,6W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 40A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C weight: 50g

Specifications

manufacturer
Manufacturer's name IRM-20-5
GTIN 4711287423845
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 79
Output current range [A] 0...4
Output voltage tolerance: [%] 2,5
Output power [W] 20
Ripple [mVp-p] 200
Data Sheet

Unit price

6,99 €

Volume discounts

Quantity Unit price
50 + 6,29 €

Stock: 1827
Further delivery:
CW 12/2025
