IRM-15-3.3

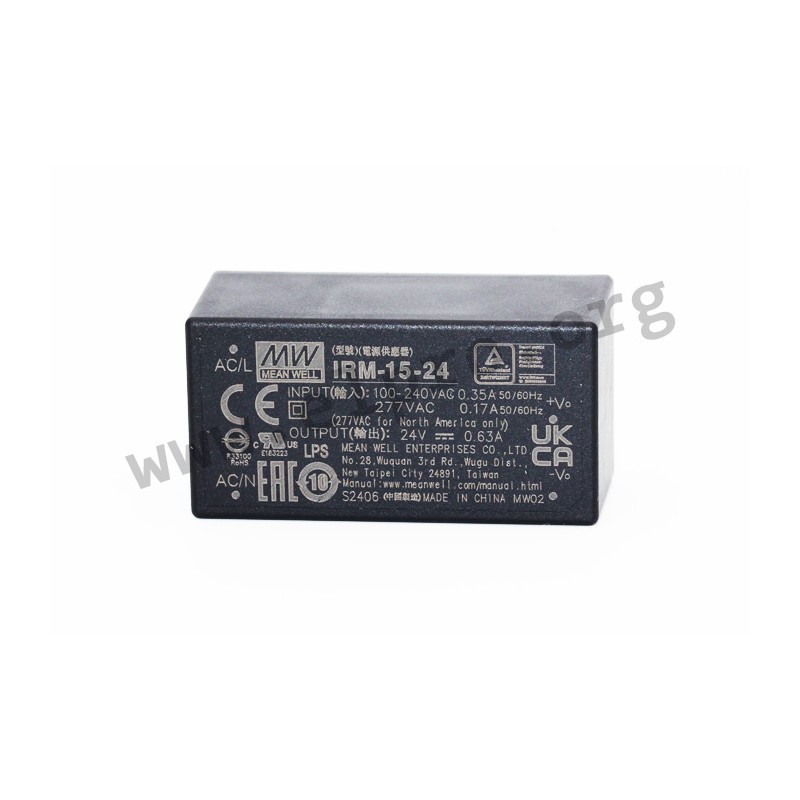

Mean Well power supply series IRM-15

Switching power supplies in an enclosed housing (PCB) with 15W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-15-3.3, IRM-15-5, IRM-15-12, IRM-15-15 and IRM-15-24.

  • single output
  • output: 11,55 to 15,12W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 40A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 52,4x27,2x24mm
  • weight: 59g
IRM-15-3.3, Mean Well switching power supplies, 15W, PCB, 52,4x27,2x24mm, IRM-15 series

IRM-15-3.3

41565 IRM-15-3.3 IRM-15-3.3 4711287423838 Mean Well power supply series IRM-15. Switching power supplies in an enclosed housing (PCB) with 15W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-15-3.3, IRM-15-5, IRM-15-12, IRM-15-15 and IRM-15-24. single output output: 11,55 to 15,12W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 40A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 52,4x27,2x24mm weight: 59g

Specifications

manufacturer
Manufacturer's name IRM-15-3.3
GTIN 4711287423838
Phase 2 phase
Efficiency [%] 74
Output current range [A] 0...3,5
Output voltage tolerance: [%] 2,5
Output power [W] 11,55
Ripple [mVp-p] 200
Data Sheet
