IRM-10-24

Mean Well power supply series IRM-10

Switching power supplies in an enclosed housing (PCB) with 10W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-10-3.3, IRM-10-5, IRM-10-12, IRM-10-15 and IRM-10-24.

  • single output
  • output: 8,25 to 10,2W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 40A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 40g

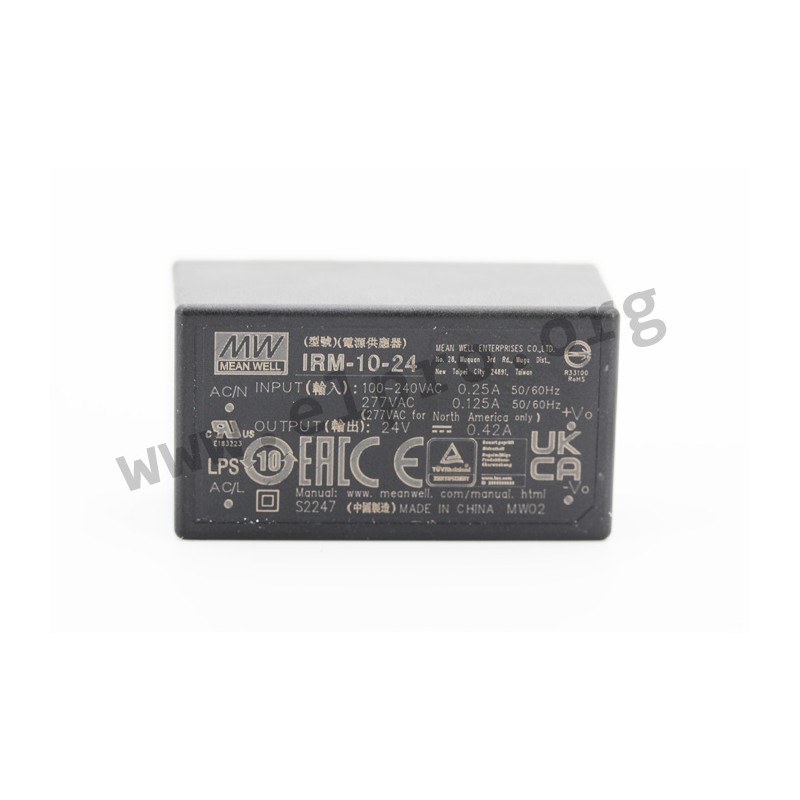

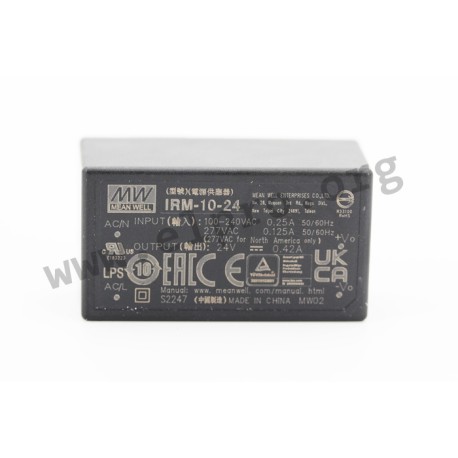

IRM-10-24, Mean Well switching power supplies, 10W, PCB, 45,7x25,4x21,5mm, IRM-10 series

IRM-10-24

41559 IRM-10-24 IRM-10-24 4711287423777 Mean Well power supply series IRM-10. Switching power supplies in an enclosed housing (PCB) with 10W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-10-3.3, IRM-10-5, IRM-10-12, IRM-10-15 and IRM-10-24. single output output: 8,25 to 10,2W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 40A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C weight: 40g

Specifications

manufacturer
Manufacturer's name IRM-10-24
GTIN 4711287423777
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 82
Output current range [A] 0...0,42
Output voltage tolerance: [%] 2,5
Output power [W] 10,08
Ripple [mVp-p] 200
Data Sheet

Unit price

5,79 €

Volume discounts

Quantity Unit price
50 + 5,29 €

Stock: 8442
Further delivery:
CW 12/2025
