IRM-05-24

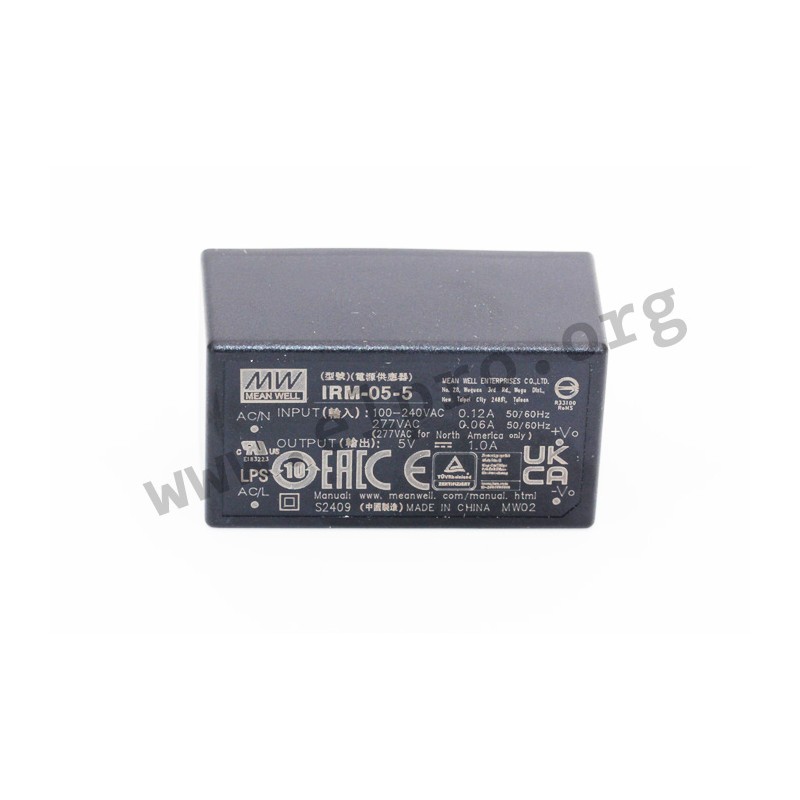

Mean Well power supply series IRM-05

Switching power supplies in an enclosed housing (PCB) with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overtemperature. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-05-3.3, IRM-05-5, IRM-05-12, IRM-05-15 and IRM-05-24.

  • single output
  • output: 5W
  • input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
  • maximal input inrush current: 40A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 45,7x25,4x21,5mm
  • weight: 33g

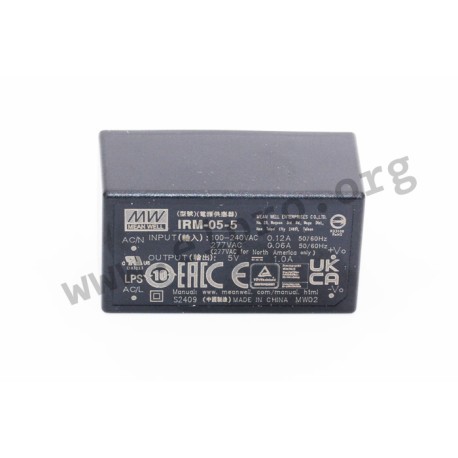

IRM-05-24, Mean Well switching power supplies, 5W, PCB, 45,7x25,4x21,5mm, IRM-05 series

IRM-05-24

41554 IRM-05-24 IRM-05-24 4711287423722 Mean Well power supply series IRM-05. Switching power supplies in an enclosed housing (PCB) with 5W, a universal input, insulation class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, short circuit as well as overtemperature. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-05-3.3, IRM-05-5, IRM-05-12, IRM-05-15 and IRM-05-24. single output output: 5W input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC maximal input inrush current: 40A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 45,7x25,4x21,5mm weight: 33g

Specifications

manufacturer
Manufacturer's name IRM-05-24
GTIN 4711287423722
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 77
Output current range [A] 0...0,23
Output voltage tolerance: [%] 2,5
Output power [W] 5,52
Ripple [mVp-p] 200
Data Sheet

Unit price

5,29 €

Volume discounts

Quantity Unit price
50 + 4,79 €

Stock: 1270
Next incoming goods:
CW 51/2024
1035 units

Further delivery:
CW 12/2025
