IRM-03-24

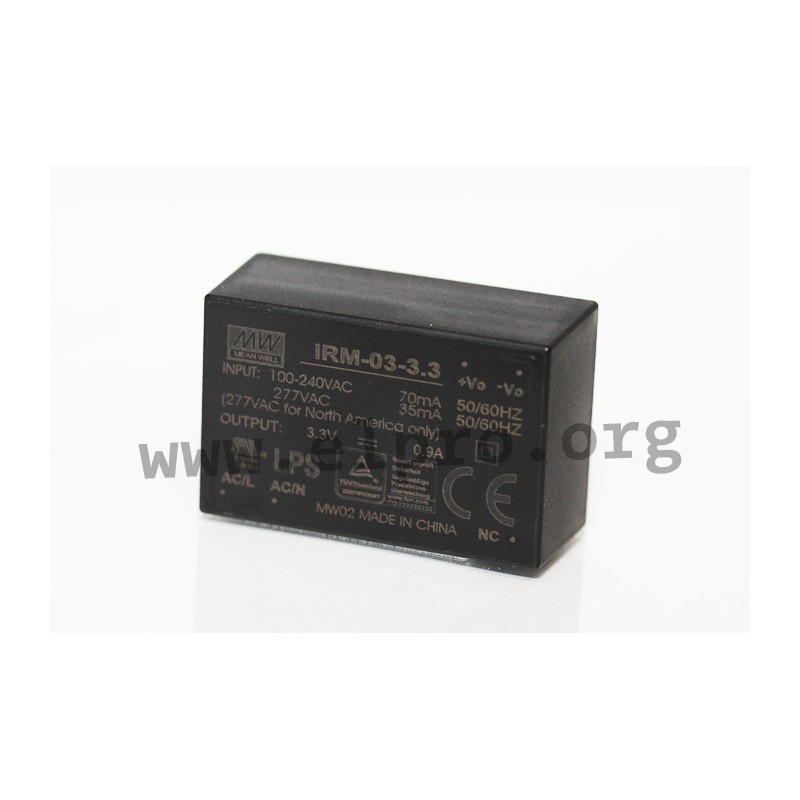

Mean Well power supply series IRM-03

Switching power supplies in an enclosed housing (PCB) with 3W, insulation class II, a low no-load power and a universal input. These devices have a fanless design and are protected against overload, short circuit as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class B, EN61000-3-2, EN61000-3-3, EN60335-1 as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-03-3.3, IRM-03-5, IRM-03-9, IRM-03-12, IRM-03-15 and IRM-03-24.

  • single output
  • output: 3W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 20A
  • no-load power: <0,075W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +85°C
  • dimensions: 37x24x15mm
  • weight: 20g
Mean Well IRM-03 series

IRM-03-24

107563 IRM-03-24 IRM-03-24 4711287423616 Mean Well power supply series IRM-03. Switching power supplies in an enclosed&nbsp;housing (PCB) with 3W, insulation class II, a low no-load power and a universal input. These devices have a fanless design and are protected against overload, short circuit as well as overtemperature. They are suitable for PCB mounting and&nbsp;comply with&nbsp;EN55032 class B, EN61000-3-2, EN61000-3-3, EN60335-1 as well as UL/EN62368-1. We offer&nbsp;the following types of this Mean Well series:&nbsp;IRM-03-3.3, IRM-03-5, IRM-03-9, IRM-03-12, IRM-03-15 and IRM-03-24. single output output: 3W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 20A no-load power: &lt;0,075W withstand voltage: 3000V AC operating temperature: -30 to +85&deg;C dimensions: 37x24x15mm weight: 20g

Specifications

manufacturer
Manufacturer's name IRM-03-24
GTIN 4711287423616
Output voltage [V] 24
Efficiency [%] 80
Output current range [A] 0...0,125
Output voltage tolerance: [%] 2,5
Output power [W] 3
Ripple [mVp-p] 240
Data Sheet

Unit price

4,19 €

Volume discounts

Quantity Unit price
50 + 3,79 €

Stock: 1493
Next incoming goods:
CW 06/2025
1120 units

Further delivery:
CW 16/2025
