IRM-02-15S

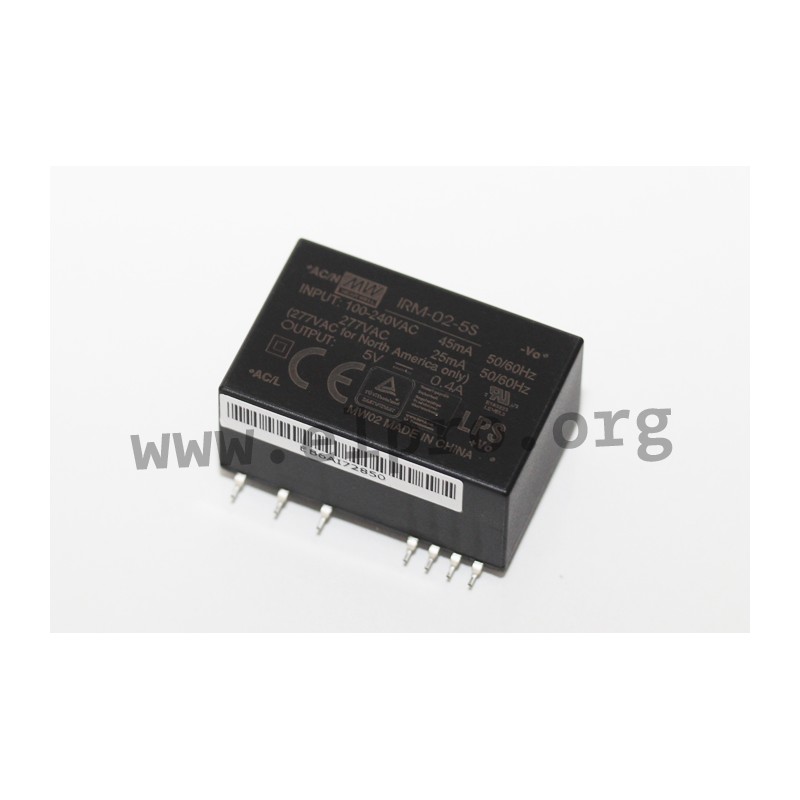

Mean Well power supply series IRM-02

Switching power supplies in an enclosed housing (PCB) with 2W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCB mounting (SMD) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: IRM-02-3.3S, IRM-02-5S, IRM-02-9S, IRM-02-12S, IRM-02-15S and IRM-02-24S.

  • single output
  • output: 2W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 10A
  • no-load power: <0,075W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +85°C
  • dimensions: 33,7x22,2x16mm
  • weight: 19g

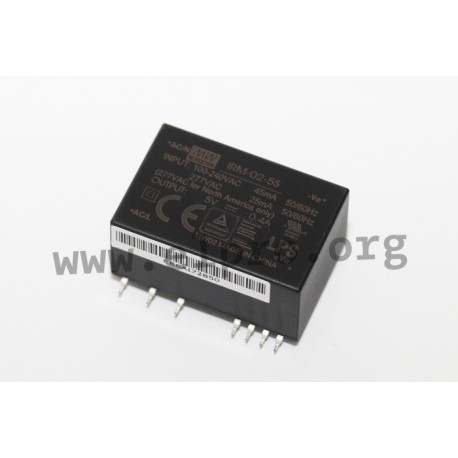

Mean Well IRM-02_S series

IRM-02-15S

107550 IRM-02-15S IRM-02-15S 4711287423548 Mean Well power supply series IRM-02. Switching power supplies in an enclosed housing (PCB) with 2W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCB mounting (SMD) and comply with&nbsp;UL/EN62368-1,&nbsp;EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;IRM-02-3.3S, IRM-02-5S, IRM-02-9S, IRM-02-12S, IRM-02-15S and IRM-02-24S. single output output: 2W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 10A no-load power: &lt;0,075W withstand voltage: 3000V AC operating temperature: -30 to +85&deg;C dimensions: 33,7x22,2x16mm weight: 19g

Specifications

manufacturer
Manufacturer's name IRM-02-15S
GTIN 4711287423548
Output voltage [V] 15
Efficiency [%] 75
Output current range [A] 0...0,133
Output voltage tolerance: [%] 2,5
Output power [W] 2
Ripple [mVp-p] 200
Data Sheet

Unit price

5,59 €

Volume discounts

Quantity Unit price
50 + 5,09 €

Stock: 146
Further delivery:
CW 16/2025
