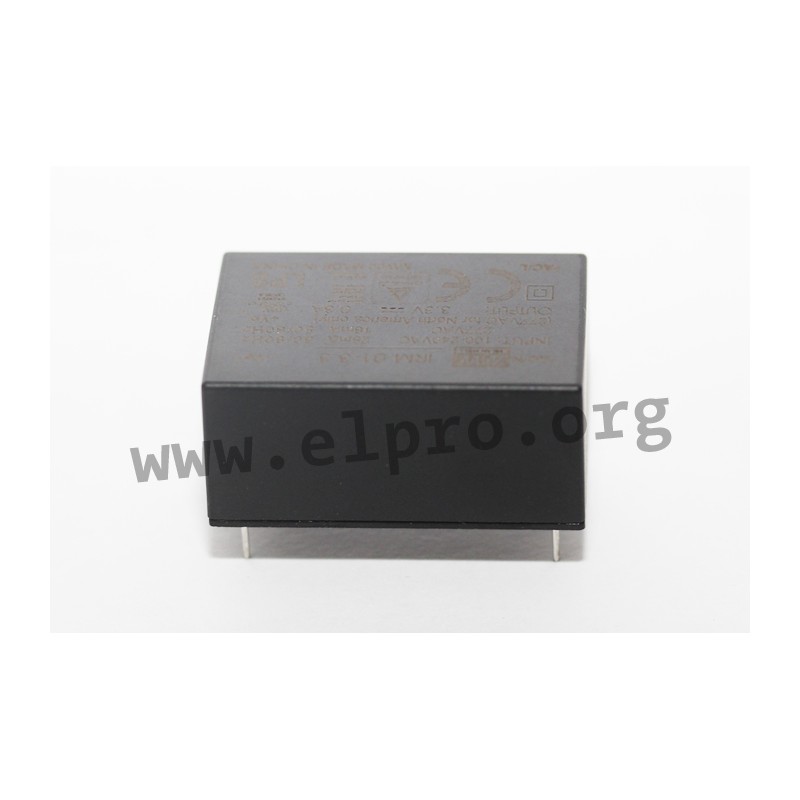

IRM-01-5

Mean Well power supply series IRM-01

Switching power supplies in an enclosed housing with 1W, a universal input, protection class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-01-3.3, IRM-01-5, IRM-01-9, IRM-01-12, IRM-01-15 and IRM-01-24.

  • single output
  • output: 1W
  • input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
  • maximal input inrush current: 10A
  • no-load power: <0,075W
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +85°C
  • weight: 19g
Mean Well IRM-01 series

IRM-01-5

107531 IRM-01-5 IRM-01-5 4711287423326 Mean Well power supply series IRM-01. Switching power supplies in an enclosed housing with 1W, a universal input, protection class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series:&nbsp;IRM-01-3.3, IRM-01-5, IRM-01-9, IRM-01-12, IRM-01-15 and&nbsp;IRM-01-24. single output output: 1W input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC maximal input inrush current: 10A no-load power: &lt;0,075W withstand voltage&nbsp;I/P-O/P: 3000V AC operating temperature: -30 to +85&deg;C weight: 19g

Specifications

manufacturer
Manufacturer's name IRM-01-5
GTIN 4711287423326
Output voltage [V] 5
Efficiency [%] 70
Output current range [A] 0...0,2
Output voltage tolerance: [%] 2,5
Output power [W] 1
Ripple [mVp-p] 150
Data Sheet

Unit price

3,79 €

Volume discounts

Quantity Unit price
50 + 3,49 €

Stock: 3099
Next incoming goods:
CW 07/2025
1280 units

Further delivery:
CW 12/2025
