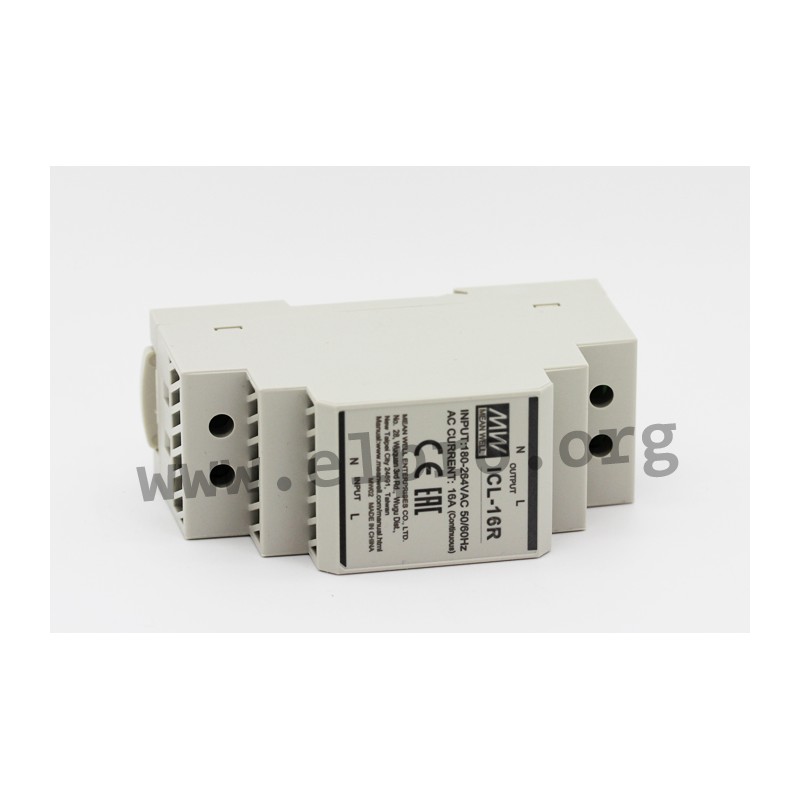

ICL-16R

Mean Well inrush current limiter series ICL-16R/16L

Current limiters for inrush current limiting, peak current limiting and R.M.S current limiting of up to 165A (20ms) and 16A with a voltage of 180 to 264V AC (continuous). These devices are suitable for handling capacitive loads (up to 2500µF) and enable an installation of multiple power supplies on the same AC line. They have an internal thermal protection as well as an integrated bypass relay. We offer the type ICL-16R for DIN-Rail mounting and the type ICL-16L for installation in terminal devices of this Mean Well series.

  • AC input range: 180 to 264V AC
  • line frequency: 47 to 63Hz AC
  • continuous current: 16A
  • operating temperature: -30 to +70°C

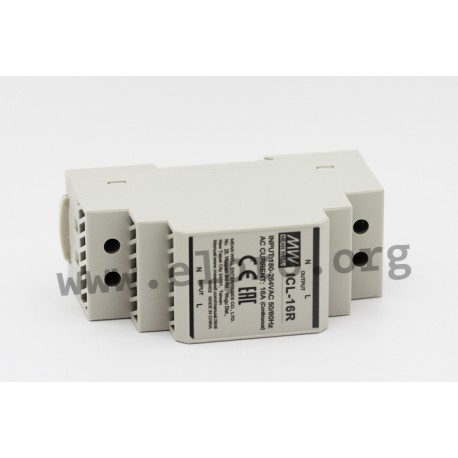

ICL-16R

ICL-16R

113398 ICL-16R ICL-16R 4711287421896 Mean Well inrush current limiter series ICL-16R/16L. Current limiters for inrush current limiting, peak current limiting and R.M.S current limiting of up to 165A (20ms) and 16A with a voltage of 180 to 264V AC (continuous). These devices are suitable for handling capacitive loads (up to 2500µF) and enable an installation of multiple power supplies on the same AC line. They have an internal thermal protection as well as an integrated bypass relay. We offer the type ICL-16R for DIN-Rail mounting and the type ICL-16L for installation in terminal devices of this Mean Well series. AC input range: 180 to 264V AC  line frequency: 47 to 63Hz AC  continuous current: 16A  operating temperature: -30 to +70°C

Specifications

manufacturer
Manufacturer's name ICL-16R
GTIN 4711287421896
R.M.S. current limiting, max. [A] 23
Release time [ms] 500
Limiting time [ms] 300
Capacity [µF] 2500
Data Sheet

Unit price

19,59 €

Volume discounts

Quantity Unit price
50 + 18,39 €

Stock: 771
Next incoming goods:
CW 49/2024
346 units

Further delivery:
CW 13/2025
