HVGC-65-1050B

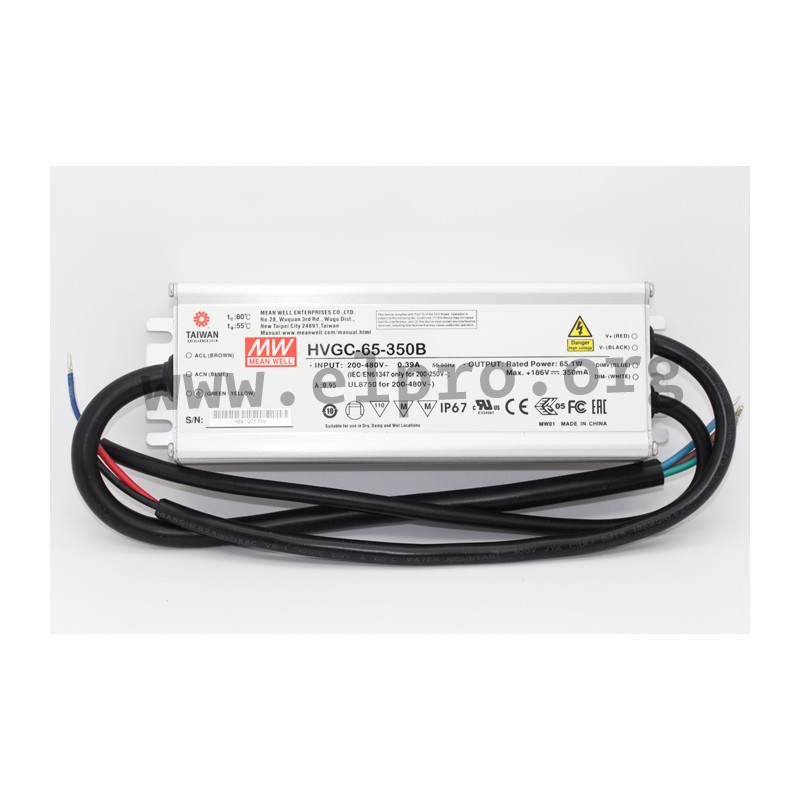

Mean Well LED driver series HVGC-65_B

LED drivers in an aluminium case (IP67) with a constant current, a high output voltage, 65W and a wide input range. These devices comply with EN61347-1, EN55015 and EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with an executed control line and are protected against short circuit, overvoltage as well as overload (auto recovery). We offer the following types of this Mean Well series: HVGC-65-350B, HVGC-65-700B and HVGC-65-1050B.

  • single output
  • output: 65,1W
  • input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500 AC
  • operating temperature: -40 to +80°C
  • weight: 770g
  • dimensions: 189x61,5x36,8mm
HVGC-65-1050B, Mean Well LED drivers, 65W, IP67, constant current, dimmable, high voltage, HVGC-65 series

HVGC-65-1050B

123097 HVGC-65-1050B HVGC-65-1050B 4711287462943 Mean Well LED driver series HVGC-65_B. LED drivers in an aluminium case (IP67) with a constant current, a high output voltage, 65W and a wide input range. These devices comply with EN61347-1, EN55015 and EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with an executed control line and are protected against short circuit, overvoltage as well as overload (auto recovery). We offer the following types of this Mean Well series: HVGC-65-350B, HVGC-65-700B and HVGC-65-1050B. single output output: 65,1W input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500 AC operating temperature: -40 to +80°C weight: 770g dimensions: 189x61,5x36,8mm

Specifications

manufacturer
Manufacturer's name HVGC-65-1050B
GTIN 4711287462943
Efficiency [%] 90
Output power [W] 65,1
Output current adjustment [mA] 1050
Output voltage range [V] 6...62
Data Sheet

Unit price

53,09 €

Volume discounts

Quantity Unit price
50 + 51,99 €

Stock: 0
Next incoming goods:
CW 48/2024
20 units

Further delivery:
CW 11/2025
