HVGC-65-1050AB

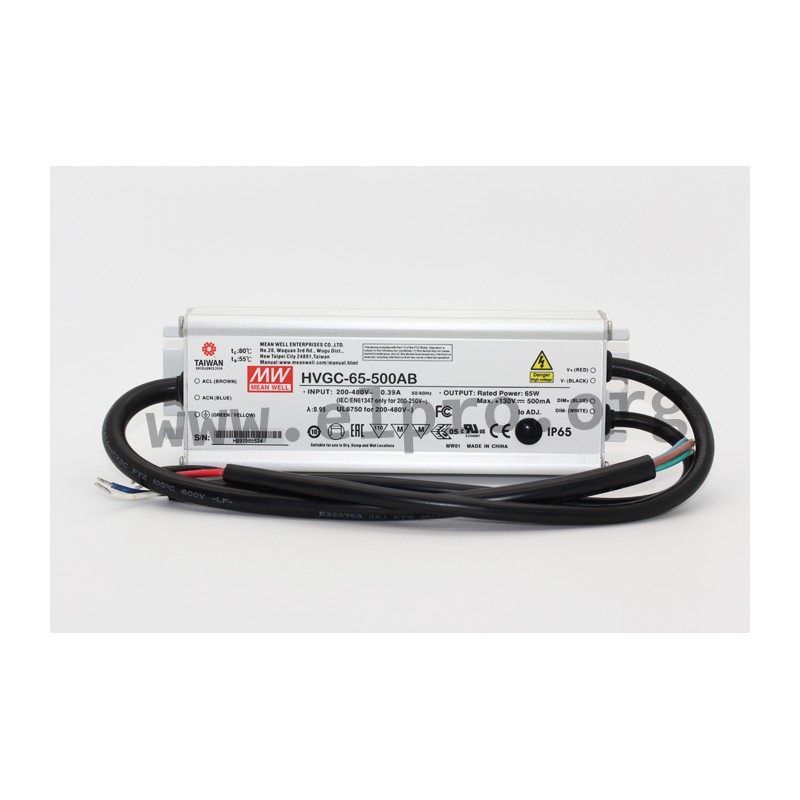

Mean Well LED driver series HVGC-65_AB

LED drivers in an aluminium case (IP65) with a constant current, a high output voltage, a built-in active PFC function and a wide input range. These devices are protected against short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN55015 and EN61000-3-2 class C. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with a control line and are suitable for LED lighting applications. Their output current is adjustable through a built-in potentiometer. We offer the following types of this Mean Well series: HVGC-65-350AB, HVGC-65-500AB, HVGC-65-700AB and HVGC-65-1050AB.

  • single output
  • output: 65 to 65,1W
  • input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 770g
  • dimensions: 189x61,5x36,8mm
HVGC-65-1050AB, Mean Well LED switching power supplies, 65W, IP65, adjustable, high voltage, dimmable, HVGC-65 series

HVGC-65-1050AB

123096 HVGC-65-1050AB HVGC-65-1050AB 4711287481333 Mean Well LED driver series HVGC-65_AB. LED drivers in an aluminium case (IP65) with a constant current, a high output voltage, a built-in active PFC function and a wide input range. These devices are protected against short circuit, overload (auto recovery) as well as overvoltage and comply with EN61347-1, EN55015 and EN61000-3-2 class C. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with a control line and are suitable for LED lighting applications. Their output current is adjustable through a built-in potentiometer. We offer the following types of this Mean Well series: HVGC-65-350AB, HVGC-65-500AB, HVGC-65-700AB and HVGC-65-1050AB. single output output: 65 to 65,1W input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 770g dimensions: 189x61,5x36,8mm

Specifications

manufacturer
Manufacturer's name HVGC-65-1050AB
GTIN 4711287481333
Efficiency [%] 90
Output power [W] 65,1
Output current adjustment [mA] 630...1050
Output voltage range [V] 6...62
Data Sheet

Unit price

53,99 €

Volume discounts

Quantity Unit price
50 + 52,89 €

Stock: 0
Next incoming goods:
CW 49/2024
8 units

Further delivery:
CW 11/2025
