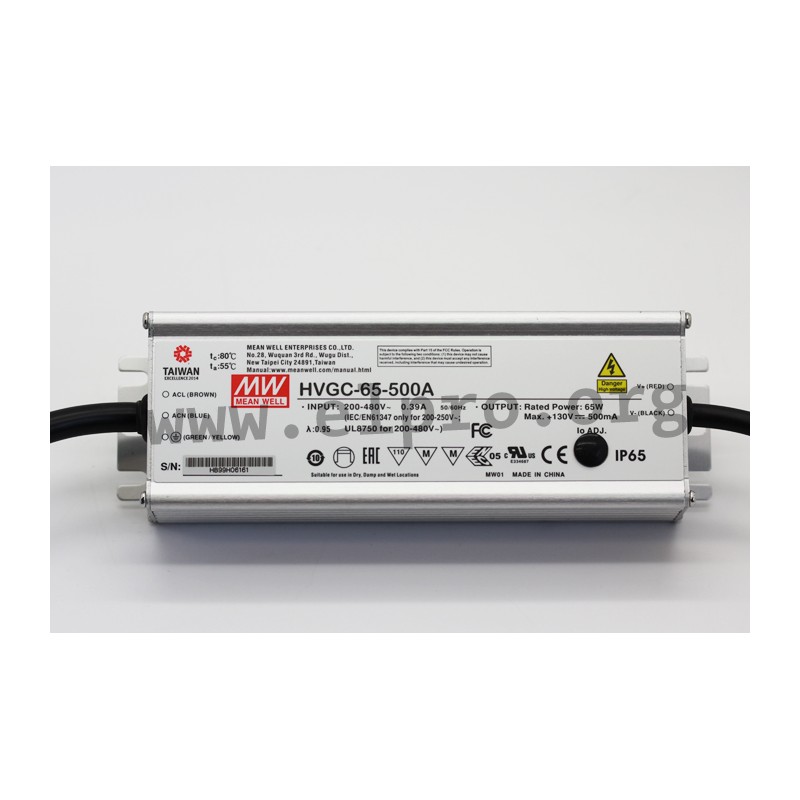

HVGC-65-500A

Mean Well LED driver series HVGC-65_A

LED drivers EN61347-1, EN55015, EN61000-3-2 class C with active PFC function comply with EN61347-1, EN55015 and EN61000-3-2 class C and have a built-in active PFC function. Their output current is adjustable through a built-in potentiometer and they are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-65-350A, HVGC-65-500A, HVGC-65-700A and HVGC-65-1050A.

  • single output
  • output: 65 to 65,1W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 770g
  • dimensions: 189x61,5x36,8mm

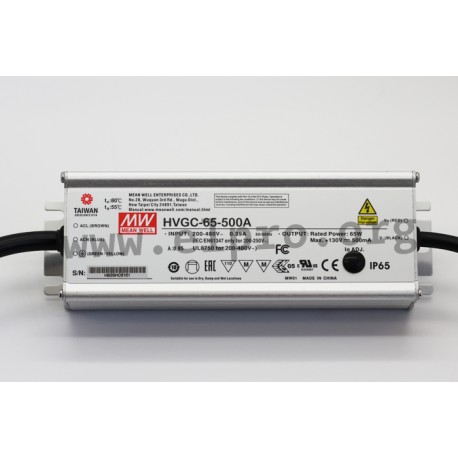

HVGC-65-500A, Mean Well LED switching power supplies, 65W, IP65, constant current, high voltage, HVGC-65 series

HVGC-65-500A

123090 HVGC-65-500A HVGC-65-500A 4711287462974 Mean Well LED driver series HVGC-65_A. LED drivers EN61347-1, EN55015, EN61000-3-2 class C with active PFC function comply with EN61347-1, EN55015 and EN61000-3-2 class C and have a built-in active PFC function. Their output current is adjustable through a built-in potentiometer and they are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-65-350A, HVGC-65-500A, HVGC-65-700A and HVGC-65-1050A. single output output: 65 to 65,1W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 770g dimensions: 189x61,5x36,8mm

Specifications

manufacturer
Manufacturer's name HVGC-65-500A
GTIN 4711287462974
Efficiency [%] 90,5
Output power [W] 65
Output current adjustment [mA] 300...500
Output voltage range [V] 13...130
Data Sheet

Unit price

51,59 €

Volume discounts

Quantity Unit price
50 + 50,49 €

Stock: 4
Further delivery:
CW 16/2025
