HVGC-65-350B

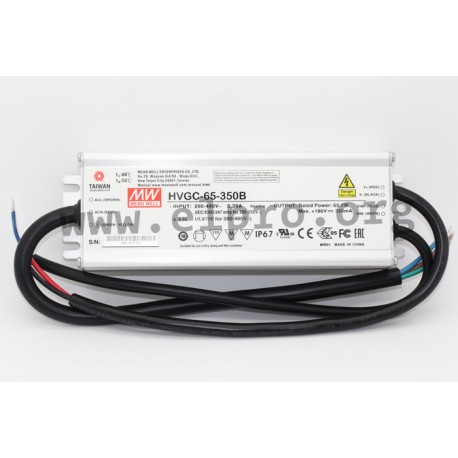

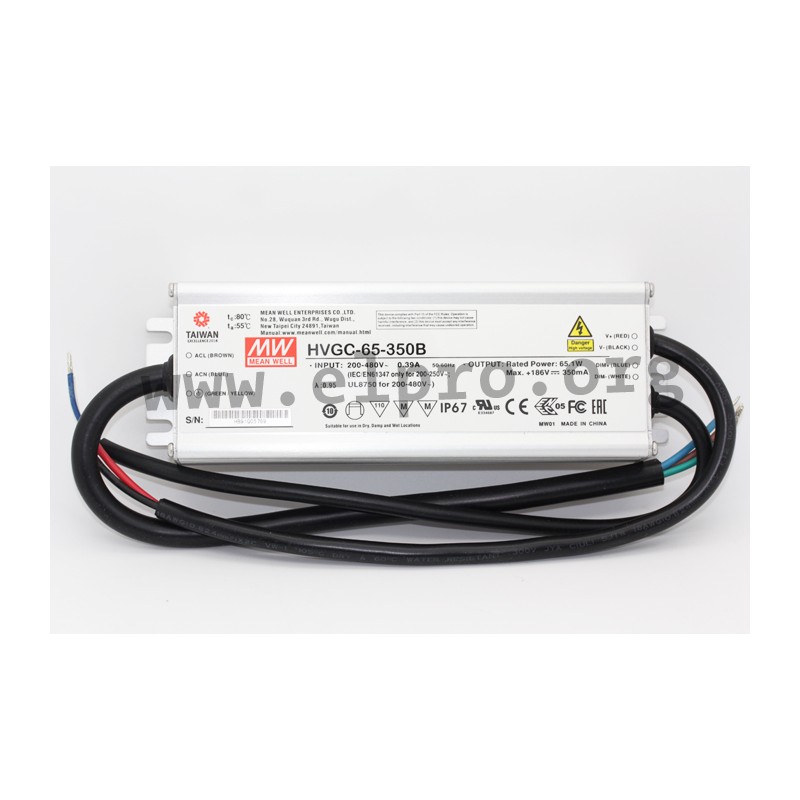

Mean Well LED driver series HVGC-65_B

LED drivers in an aluminium case (IP67) with a constant current, a high output voltage, 65W and a wide input range. These devices comply with EN61347-1, EN55015 and EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with an executed control line and are protected against short circuit, overvoltage as well as overload (auto recovery). We offer the following types of this Mean Well series: HVGC-65-350B, HVGC-65-700B and HVGC-65-1050B.

  • single output
  • output: 65,1W
  • input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500 AC
  • operating temperature: -40 to +80°C
  • weight: 770g
  • dimensions: 189x61,5x36,8mm
HVGC-65-350B, Mean Well LED drivers, 65W, IP67, constant current, dimmable, high voltage, HVGC-65 series

HVGC-65-350B

123089 HVGC-65-350B HVGC-65-350B 4711287462967 Mean Well LED driver series HVGC-65_B. LED drivers in an aluminium case (IP67) with a constant current, a high output voltage, 65W and a wide input range. These devices comply with EN61347-1, EN55015 and EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with an executed control line and are protected against short circuit, overvoltage as well as overload (auto recovery). We offer the following types of this Mean Well series: HVGC-65-350B, HVGC-65-700B and HVGC-65-1050B. single output output: 65,1W input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC maximal input inrush current: 25A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500 AC operating temperature: -40 to +80°C weight: 770g dimensions: 189x61,5x36,8mm

Specifications

manufacturer
Manufacturer's name HVGC-65-350B
GTIN 4711287462967
Efficiency [%] 90
Output power [W] 65,1
Output current adjustment [mA] 350
Output voltage range [V] 18...186
Data Sheet

Unit price

53,09 €

Volume discounts

Quantity Unit price
50 + 51,99 €

Stock: 45
Further delivery:
CW 11/2025
