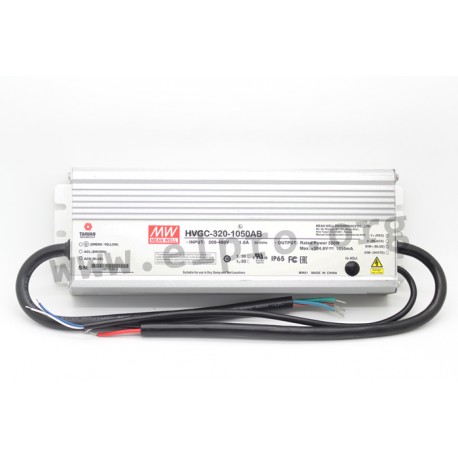

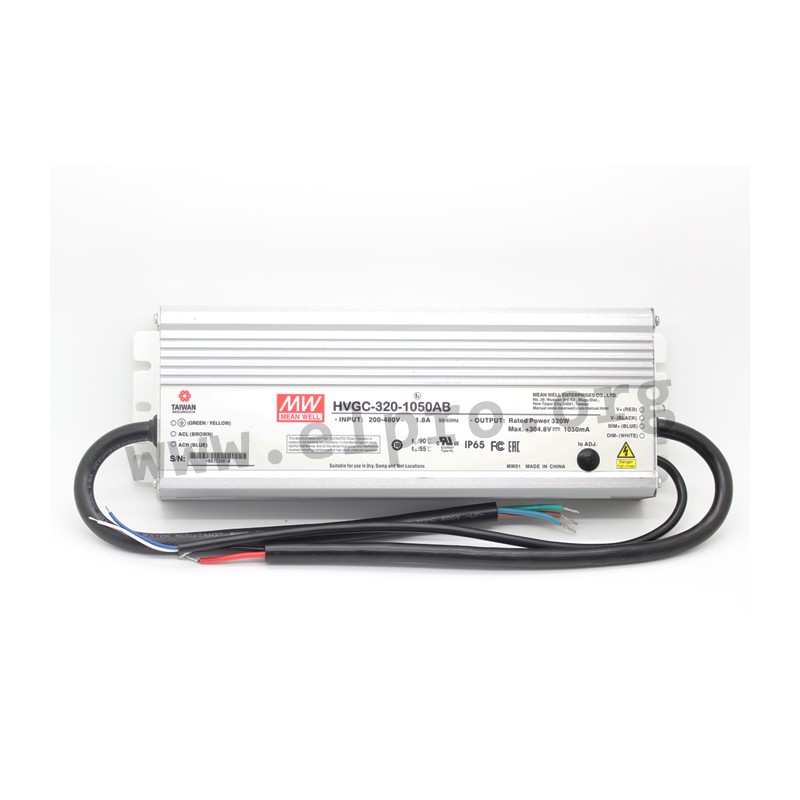

HVGC-320-1050AB

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the current limitation and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as EN55015 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-320-700AB, HVGC-320-1050AB, HVGC-320-1400AB, HVGC-320-1750AB, HVGC-320-2100AB, HVGC-320-2800AB and HVGC-320-3500AB.

  • single output
  • output: 300 to 320W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A/480V
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x90x43,8mm
  • weight: 2000g
HVGC-320-1050AB, Mean Well LED drivers, 320W, IP65, constant current, high voltage, HVGC-320 series

HVGC-320-1050AB

112733 HVGC-320-1050AB HVGC-320-1050AB 4711287454825 Mean Well LED driver series HVGC-320. LED drivers in a metal housing (IP65) with a constant current, a built-in potentiometer for adjusting the current limitation and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as EN55015 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-320-700AB, HVGC-320-1050AB, HVGC-320-1400AB, HVGC-320-1750AB, HVGC-320-2100AB, HVGC-320-2800AB and HVGC-320-3500AB. single output output: 300 to 320W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 50A/480V withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x90x43,8mm weight: 2000g

Specifications

manufacturer
Manufacturer's name HVGC-320-1050AB
GTIN 4711287454825
Output voltage [V] 114,3...228,6
Efficiency [%] 93,5
Output power [W] 320
Output current adjustment [A] 0,525...1,05
Data Sheet

Unit price

105,79 €

Volume discounts

Quantity Unit price
50 + 103,59 €

Stock: 13
Further delivery:
CW 16/2025
