HVGC-240-1400B

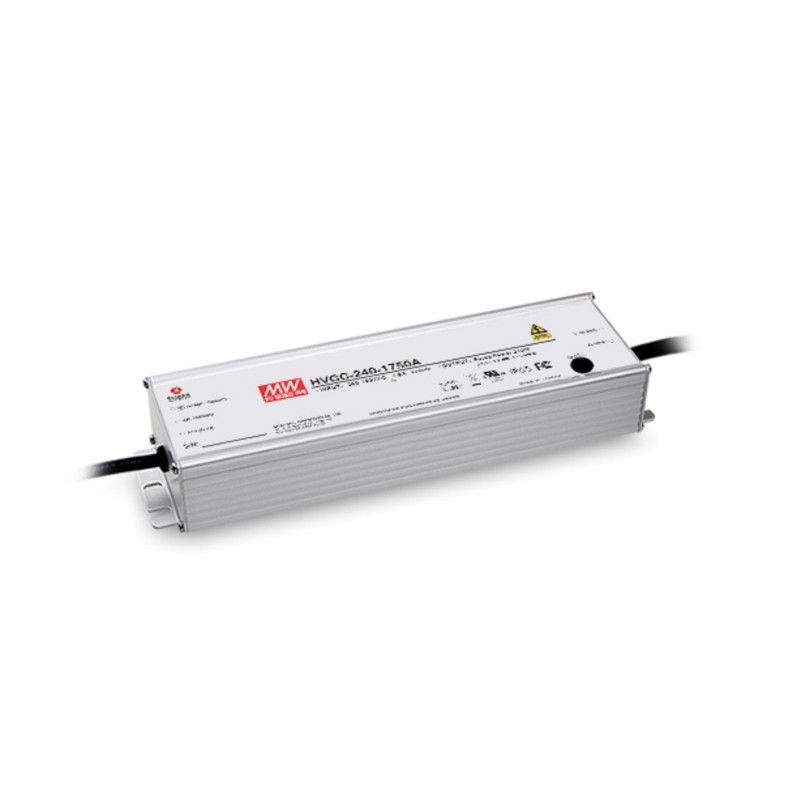

Mean Well LED driver series HVGC-240

LED drivers in a metal housing (IP67) with 240W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. We offer the following types of this Mean Well series: HVGC-240-700B, HVGC-2400-1050B, HVGC-240-1400B, HVGC-240-1750B, HVGC-240-2100B, HVGC-240-2800B and HVGC-240-3500B.

  • single output
  • output: 240 to 240,1W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 200V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 254,2x68x38,8mm
  • weight: 1350g

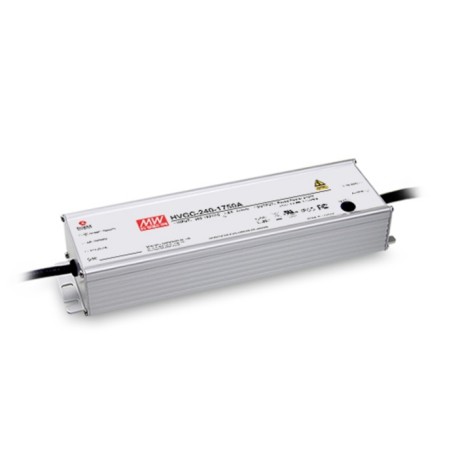

HVGC-240-1400B, Mean Well LED drivers, 240W, IP67, constant current, dimmable, high voltage, HVGC-240 series

HVGC-240-1400B

244783 HVGC-240-1400B HVGC-240-1400B 4711287454658 Mean Well LED driver series HVGC-240. LED drivers in a metal housing (IP67) with 240W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. We offer the following types of this Mean Well series: HVGC-240-700B, HVGC-2400-1050B, HVGC-240-1400B, HVGC-240-1750B, HVGC-240-2100B, HVGC-240-2800B and HVGC-240-3500B. single output output: 240 to 240,1W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 50A (480V) withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 200V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 254,2x68x38,8mm weight: 1350g

Specifications

manufacturer
Manufacturer's name HVGC-240-1400B
GTIN 4711287454658
Output voltage [V] 85,7...171,4
Efficiency [%] 93
Output power [W] 240
Data Sheet

Unit price

81,09 €

Stock: 0
Further delivery:
CW 17/2025
