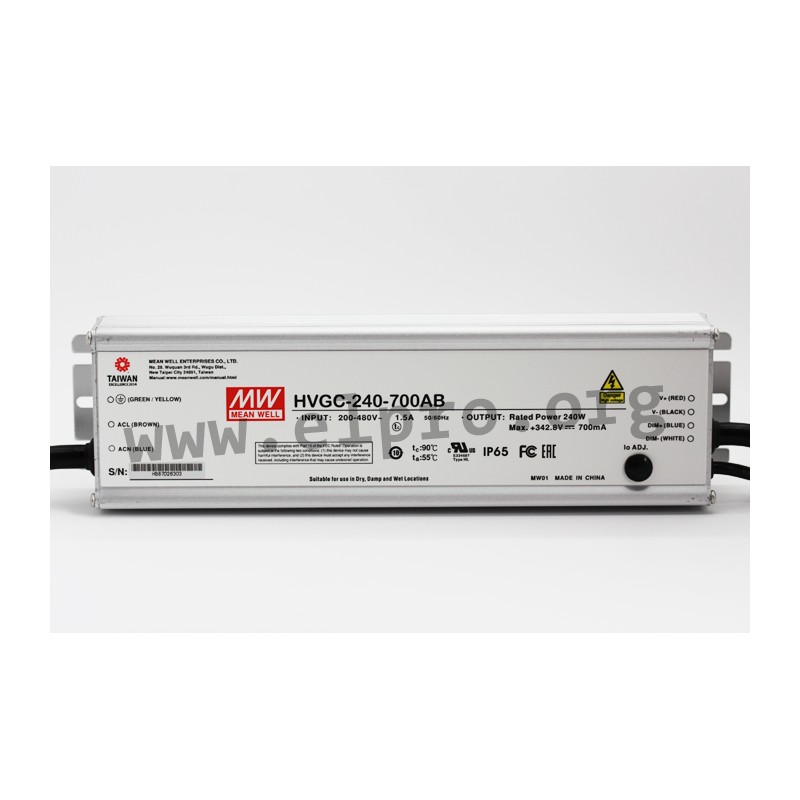

HVGC-240-700AB

Mean Well LED driver series HVGC-240

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a built-in potentiometer for adjusting the current limitation and 240W. These devices comply with EN55015, EN61547, EN61000-3-3, EN61000-3-2 class C, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-240-700AB, HVGC-240-1050AB, HVGC-240-1400AB, HVGC-240-1750AB, HVGC-240-2100AB, HVGC-240-2800AB and HVGC-240-3500AB.

  • single output
  • output: 240 to 240,1W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A/480V
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 254,2x68x38,8mm
  • weight: 1350g

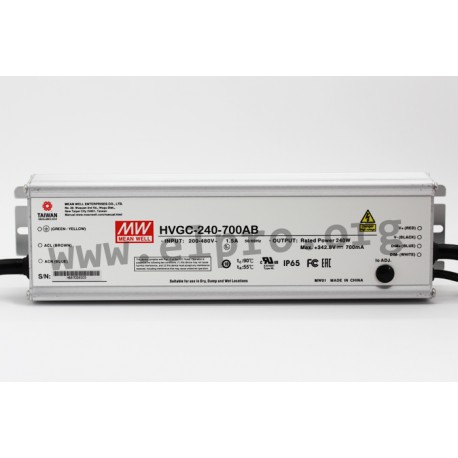

HVGC-240-700AB, 240 watts, IP65, constant current, high voltage, HVGC-240 series by Meanwell

HVGC-240-700AB

112725 HVGC-240-700AB HVGC-240-700AB 4711287454795 Mean Well LED driver series HVGC-240. LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a built-in potentiometer for adjusting the current limitation and 240W. These devices comply with EN55015, EN61547, EN61000-3-3, EN61000-3-2 class C, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-240-700AB, HVGC-240-1050AB, HVGC-240-1400AB, HVGC-240-1750AB, HVGC-240-2100AB, HVGC-240-2800AB and HVGC-240-3500AB. single output output: 240 to 240,1W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 50A/480V withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 254,2x68x38,8mm weight: 1350g

Specifications

manufacturer
Manufacturer's name HVGC-240-700AB
GTIN 4711287454795
Output voltage [V] 171,4...342,8
Efficiency [%] 93,5
Output power [W] 240
Output current adjustment [A] 0,35...0,7
Data Sheet

Unit price

82,29 €

Volume discounts

Quantity Unit price
50 + 80,49 €

Stock: 10
Further delivery:
CW 11/2025
