HVGC-150-500A

Mean Well LED driver series HVGC-150

LED drivers in a metal housing (IP65) with a built-in potentiometer for adjusting the current limitation, a constant current and 150W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-150-350A, HVGC-150-500A, HVGC-100-700A, HVGC-150-1050A and HVGC-150-1400A.

  • single output
  • output: 149,8 to 150,5W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 35A/480V
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C

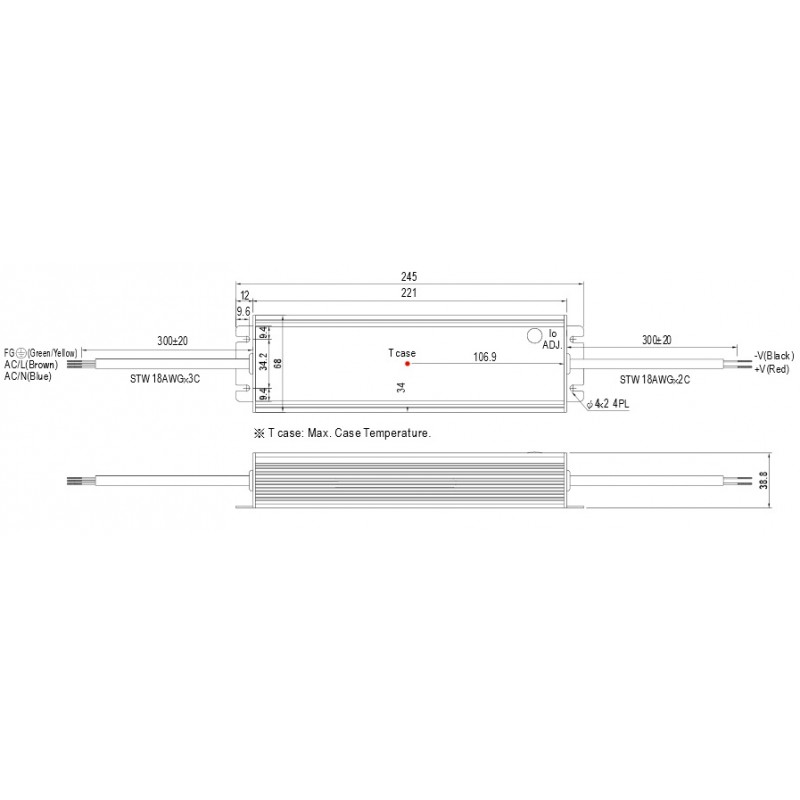

  • dimensions: 245x68x38,8mm
  • weight: 1240g

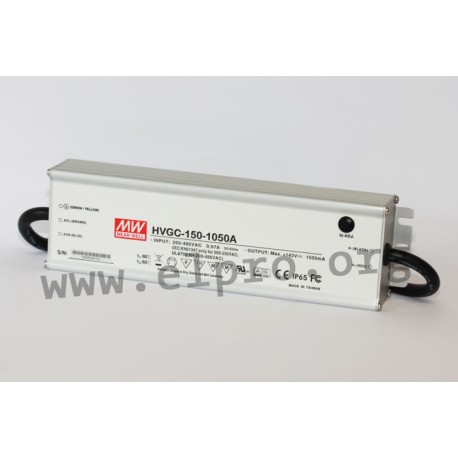

HVGC-150-1050A

HVGC-150-500A

39106 HVGC-150-500A HVGC-150-500A 4711287454566 Mean Well LED driver series HVGC-150. LED drivers in a metal housing (IP65) with a built-in potentiometer for adjusting the current limitation, a constant current and 150W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-150-350A, HVGC-150-500A, HVGC-100-700A, HVGC-150-1050A and HVGC-150-1400A. single output output: 149,8 to 150,5W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 35A/480V withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 245x68x38,8mm weight: 1240g

Specifications

manufacturer
Manufacturer's name HVGC-150-500A
GTIN 4711287454566
Output voltage [V] 30...300
Phase 2 phase
Output current adjustment [A] 0,3...0,5
Efficiency [%] 91
Output power [W] 150
Ripple [mVp-p] 1500
Data Sheet

Unit price

69,59 €

Volume discounts

Quantity Unit price
50 + 68,09 €

Stock: 49
