HVGC-150-1400AB

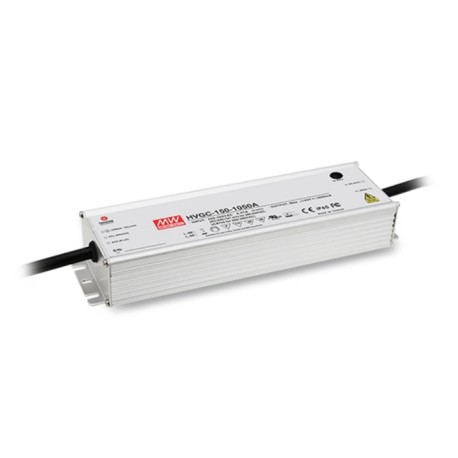

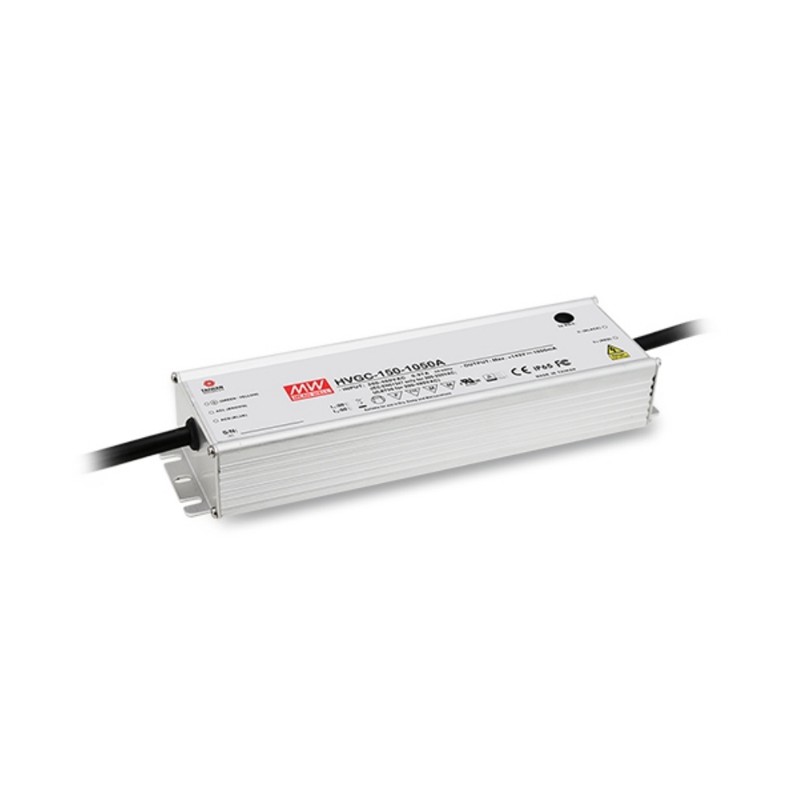

Mean Well LED driver series HVGC-150

LED drivers in a metal housing (IP65) with 150W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HVGC-150-350AB, HVGC-150-500AB, HVGC-150-700AB, HVGC-150-1050AB and HVGC-150-1400AB.

  • single output
  • output: 149,8 to 150,5W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 35A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 245x68x38,8mm
  • weight: 1240g
HVGC-150-1400AB, Mean Well LED drivers, 150W, IP65, constant current, dimmable, adjustable, high voltage, HVGC-150 series

HVGC-150-1400AB

244758 HVGC-150-1400AB HVGC-150-1400AB 4711287482088 Mean Well LED driver series HVGC-150. LED drivers in a metal housing (IP65) with 150W, a constant current, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HVGC-150-350AB, HVGC-150-500AB, HVGC-150-700AB, HVGC-150-1050AB and HVGC-150-1400AB. single output output: 149,8 to 150,5W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 35A (480V) withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 245x68x38,8mm weight: 1240g

Specifications

manufacturer
Manufacturer's name HVGC-150-1400AB
GTIN 4711287482088
Output voltage [V] 12...107
Efficiency [%] 90
Output current [A] 0,84...1,4
Output power [W] 149,8
Data Sheet

Unit price

72,19 €

Stock: 0
Further delivery:
CW 11/2025
