HVGC-150-1400B

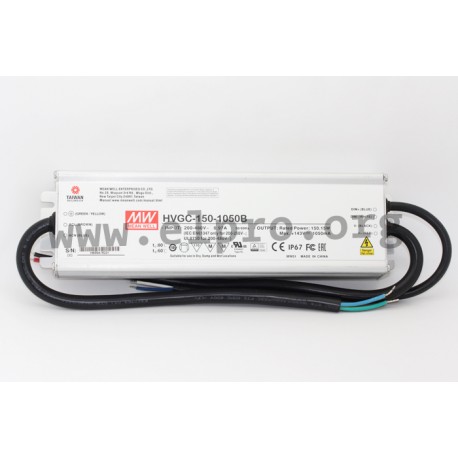

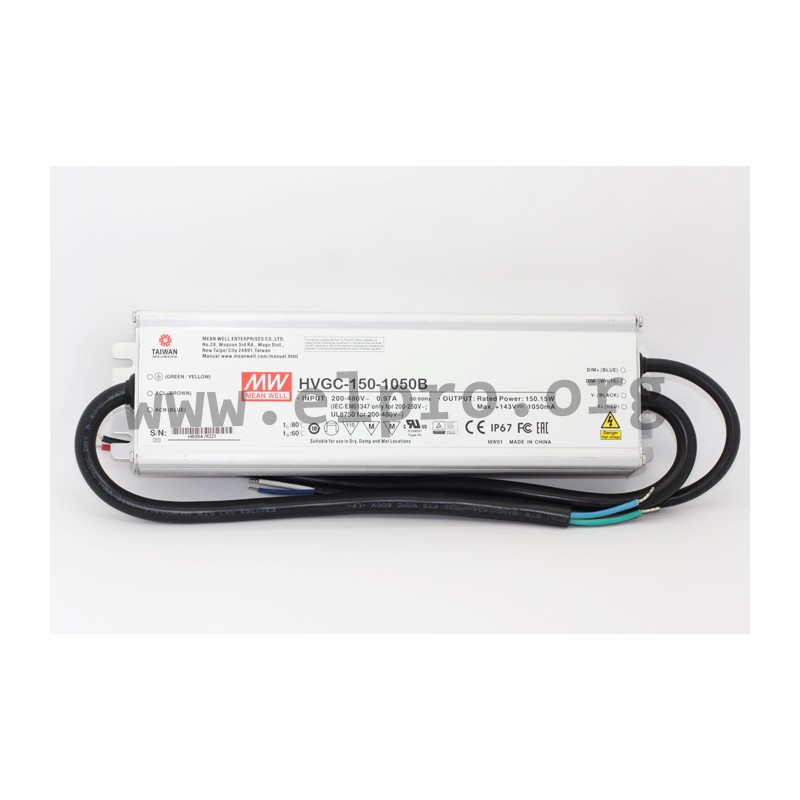

Mean Well LED driver series HVGC-150

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 150W and a constant current. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HVGC-150-350B, HVGC-150-500B, HVGC-150-700B, HVGC-150-1050B and HVGC-150-1400B.

  • single output
  • output: 149,8 to 150,5W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 35A/480V
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 245x68x38,8mm
  • weight: 1240g
HVGC-150-1400B, Mean Well LED drivers, 150W, IP67, constant current, dimmable, high voltage, HVGC-150 series

HVGC-150-1400B

123324 HVGC-150-1400B HVGC-150-1400B 4711287454535 Mean Well LED driver series HVGC-150. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 150W and a constant current. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HVGC-150-350B, HVGC-150-500B, HVGC-150-700B, HVGC-150-1050B and HVGC-150-1400B. single output output: 149,8 to 150,5W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 35A/480V withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 245x68x38,8mm weight: 1240g

Specifications

manufacturer
Manufacturer's name HVGC-150-1400B
GTIN 4711287454535
Efficiency [%] 90
Output current [A] 1,4
Output power [W] 149,8
Output voltage range [V] 12...107
Data Sheet
