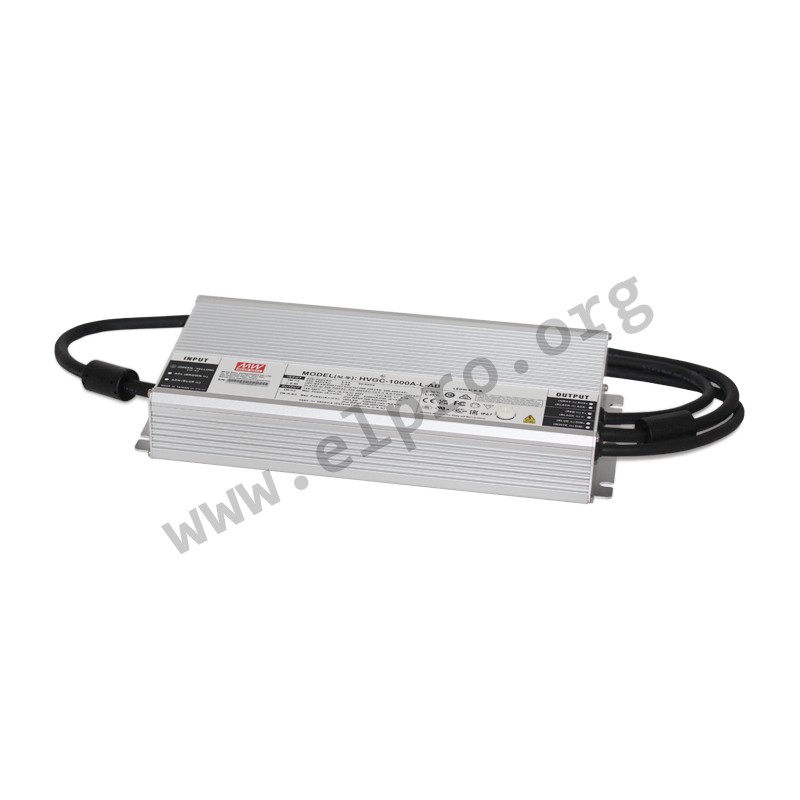

HVGC-1000A-H-D2

Mean Well LED driver series HVGC-1000

LED drivers in a metal housing (IP67) with 1000W, a constant power, a smart timer dimming function (HVGC-1000A_-D2), an auxiliary power and a Dali-2 interface (HVGC-1000A_-DA). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HVGC-1000A-L-D2, HVGC-1000A-L-DA, HVGC-1000A-M-D2, HVGC-1000A-M-DA, HVGC-1000A-H-D2 and HVGC-1000A-H-DA.

  • single output
  • output: 1003,2 to 1008W
  • input voltage: 180 to 528V AC (47 to 63Hz)
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 310x144x48,5mm
  • weight: 4200g

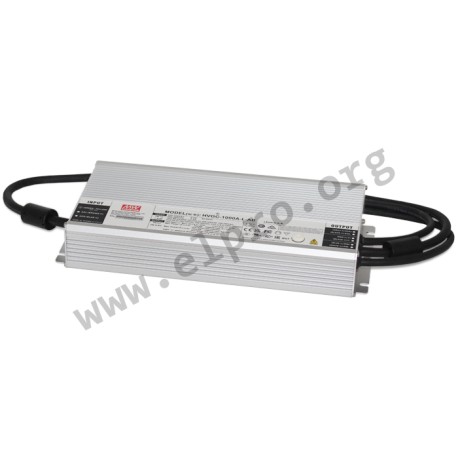

HVGC-1000A-H-D2, Mean Well LED drivers, 1000W, IP67, constant power, smart timer dimming, DALI 2.0 interface, HVGC-1000 series

HVGC-1000A-H-D2

244873 HVGC-1000A-H-D2 HVGC-1000A-H-D2 Mean Well LED driver series HVGC-1000. LED drivers in a metal housing (IP67) with 1000W, a constant power, a smart timer dimming function (HVGC-1000A_-D2), an auxiliary power and a Dali-2 interface (HVGC-1000A_-DA). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61000-3-2 class C as well as EN55015. We offer the following types of this Mean Well series: HVGC-1000A-L-D2, HVGC-1000A-L-DA, HVGC-1000A-M-D2, HVGC-1000A-M-DA, HVGC-1000A-H-D2 and HVGC-1000A-H-DA. single output output: 1003,2 to 1008W input voltage: 180 to 528V AC (47 to 63Hz) maximal input inrush current: 40A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 310x144x48,5mm weight: 4200g

Specifications

manufacturer
Manufacturer's name HVGC-1000A-H-D2
Output voltage [V] 70...180
Efficiency [%] 96
Output power [W] 1008
Ripple & noise [%] 5
Output current adjustment [mA] 2800...7000
Data Sheet

Unit price

333,39 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 200 units or
multiples of 200.
