HVGC-100-350A

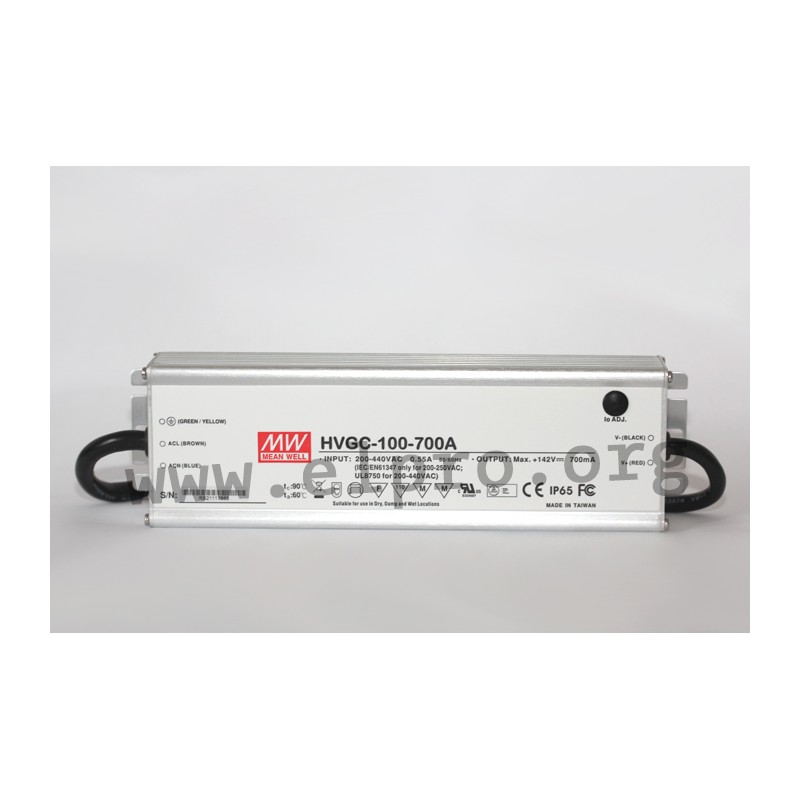

Mean Well LED driver series HVGC-100

LED drivers in a metal housing (IP65) with a constant current and 100W. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HVGC-100-350A and HVGC-100-700A.

  • single output
  • output: 99,4 to 99,75W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 25A/480V DC
  • efficiency: 91%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

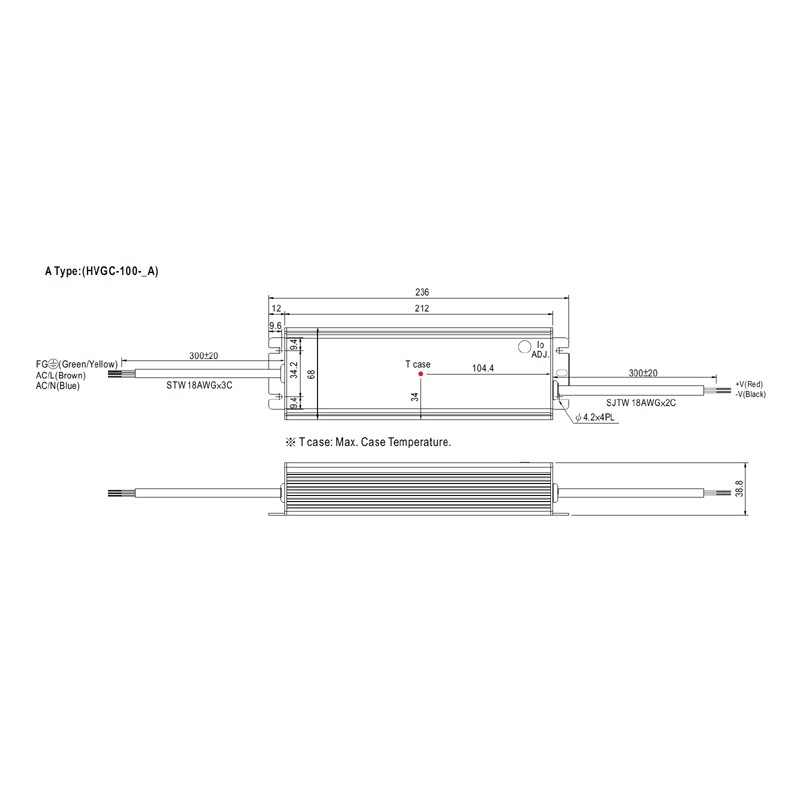

  • dimensions: 236x68x38,8mm
  • weight: 1180g
Meanwell HVGC-100 series

HVGC-100-350A

36247 HVGC-100-350A HVGC-100-350A 4711287454467 Mean Well LED driver series HVGC-100. LED drivers in a metal housing (IP65) with a constant current and 100W. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HVGC-100-350A and HVGC-100-700A. single output output: 99,4 to 99,75W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 25A/480V DC efficiency: 91% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 236x68x38,8mm weight: 1180g

Specifications

manufacturer
Manufacturer's name HVGC-100-350A
GTIN 4711287454467
Output voltage [V] 29...285
Phase 2 phase
Output current adjustment [A] 0,21...0,35
Efficiency [%] 91
Output power [W] 99,75
Ripple [mVp-p] 1000
Data Sheet

Unit price

69,59 €

Volume discounts

Quantity Unit price
50 + 68,09 €

Stock: 11
Further delivery:
CW 11/2025
