HSP-300-4.2

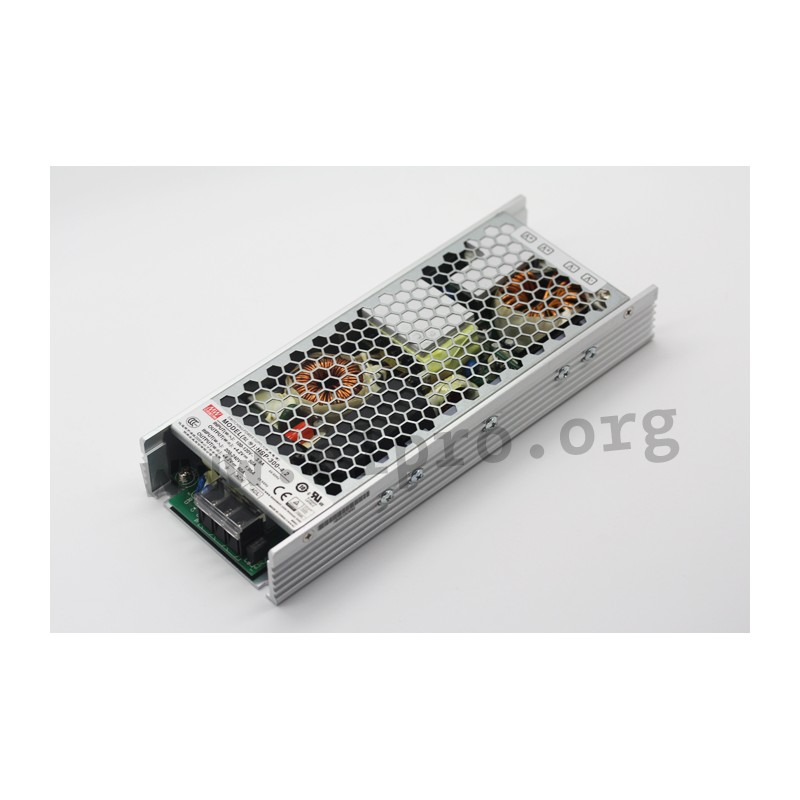

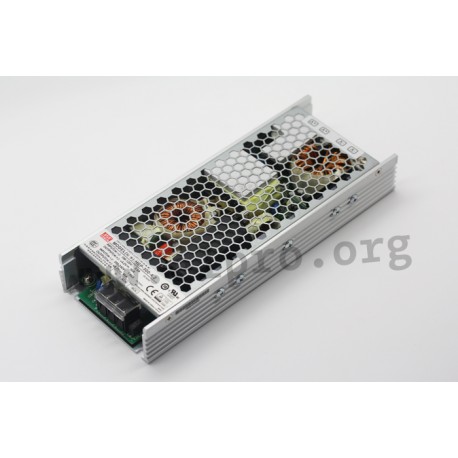

Mean Well power supply series HSP-300

Switching power supplies in an enclosed housing with 300W, screw terminals and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a conformal coating and comply with UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HSP-300-2.8, HSP-300-4.2 and HSP-300-5.

  • single output
  • output: 168 to 300W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 800g
HSP-300-4.2

HSP-300-4.2

45616 HSP-300-4.2 HSP-300-4.2 4711232760742 Mean Well power supply series HSP-300. Switching power supplies in an enclosed housing with 300W, screw terminals and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a conformal coating and comply with&nbsp;UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;HSP-300-2.8, HSP-300-4.2 and HSP-300-5. single output output: 168 to 300W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 60A leakage current: &lt;1mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 800g

Specifications

manufacturer
Manufacturer's name HSP-300-4.2
GTIN 4711232760742
Output voltage [V] 4,2
Efficiency [%] 85
Output current range [A] 0...60
Output voltage tolerance: [%] 2
Output power [W] 252
Ripple [mVp-p] 150
Output voltage adjustment [V] 3,6...4,4
Data Sheet

Unit price

57,89 €

Volume discounts

Quantity Unit price
50 + 56,69 €

Stock: 5
Further delivery:
CW 12/2025
