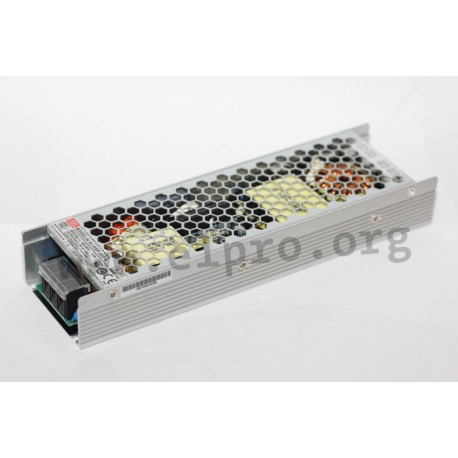

HSP-200-5

Mean Well power supply series HSP-200

Switching power supplies in an enclosed housing with 200W, a universal input, a low profile (31mm) and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a conformal coating and comply with UL60950-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HSP-200-4.2 and HSP-200-5.

  • single output
  • output: 168 to 200W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 520g
HSP-200-5

HSP-200-5

45614 HSP-200-5 HSP-200-5 4711232760698 Mean Well power supply series HSP-200. Switching power supplies in an&nbsp;enclosed housing with 200W, a universal input, a low profile (31mm) and&nbsp;screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a conformal coating and comply with&nbsp;UL60950-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;HSP-200-4.2 and HSP-200-5. single output output: 168 to 200W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 520g

Specifications

manufacturer
Manufacturer's name HSP-200-5
GTIN 4711232760698
Output voltage [V] 5
Efficiency [%] 88,5
Output current range [A] 0...40
Output voltage tolerance: [%] 2
Output power [W] 200
Ripple [mVp-p] 150
Output voltage adjustment [V] 4,5...5,5
Data Sheet

Unit price

48,59 €

Volume discounts

Quantity Unit price
50 + 47,59 €

Stock: 44
Further delivery:
CW 16/2025
