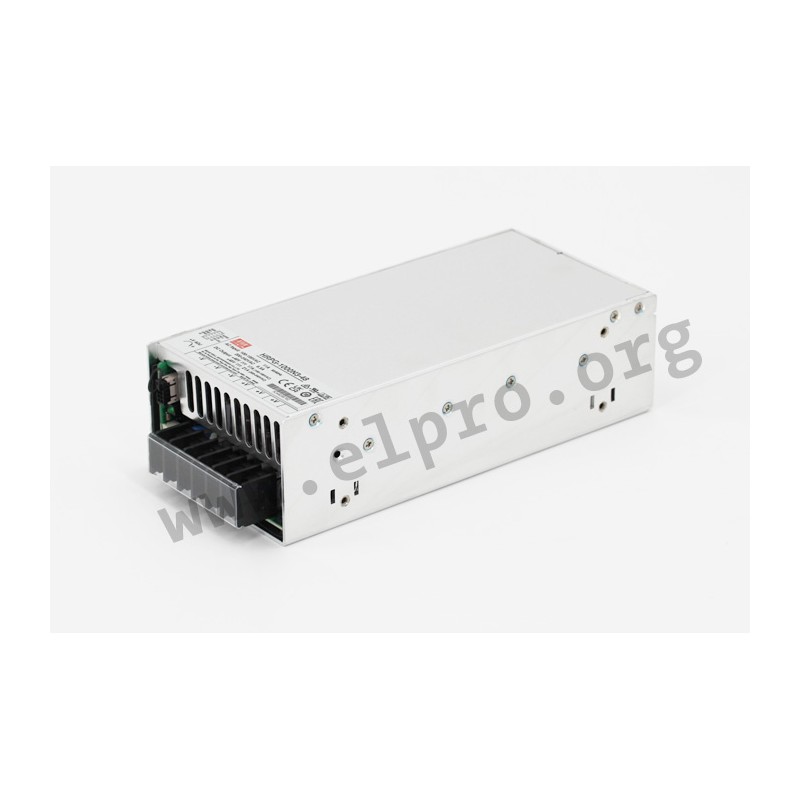

HRPG-1000N3-48

Mean Well power supply series HRPG-1000N3

Switching power supplies in an enclosed housing with 1000W, a fan, a universal input, protection class I, a DC OK signal and a remote ON/OFF control. These devices have a built-in active PFC function, are suitable for a peak power of up to 320% and are protected against overload, short circuit as well as overvoltage. They have a parallel function (3+1 units / max. 4000W), a low no-load power consumption (<0,85W) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRPG-1000N3-12, HRPG-1000N3-24, HRPG-1000N3-36 and HRPG-1000N3-48.

  • single output
  • output: 960 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1,2mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • connection type: screw terminal
  • operating temperature: -40 to +70°C
  • weight: 1460g

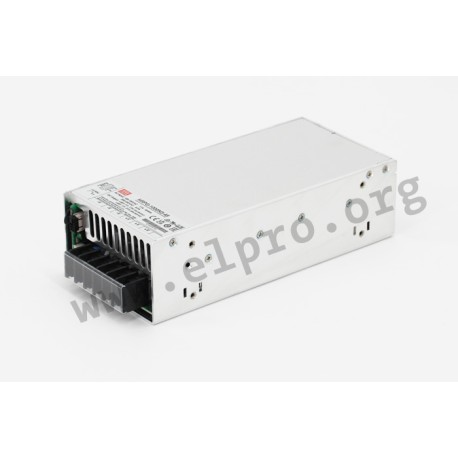

HRPG-1000N3-48, Mean Well switching power supplies, 1000W, 320% peak power, HRPG-1000N3 series

HRPG-1000N3-48

244397 HRPG-1000N3-48 HRPG-1000N3-48 Mean Well power supply series HRPG-1000N3. Switching power supplies in an enclosed housing with 1000W, a fan, a universal input, protection class I, a DC OK signal and a remote ON/OFF control. These devices have a built-in active PFC function, are suitable for a peak power of up to 320% and are protected against overload, short circuit as well as overvoltage. They have a parallel function (3+1 units / max. 4000W), a low no-load power consumption (&lt;0,85W) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRPG-1000N3-12, HRPG-1000N3-24, HRPG-1000N3-36 and HRPG-1000N3-48. single output output: 960 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;1,2mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC connection type: screw terminal  operating temperature: -40 to +70°C weight: 1460g

Specifications

manufacturer
Manufacturer's name HRPG-1000N3-48
Output voltage [V] 48
Efficiency [%] 94
Output current [A] 21
Output voltage tolerance: [%] ±1
Output power [W] 1008
Output voltage adjustment [V] 46...56
Ripple [mVp-p] 250
Data Sheet

Unit price

179,19 €

Volume discounts

Quantity Unit price
50 + 176,19 €

Stock: 1
Next incoming goods:
CW 12/2025
4 units

Further delivery:
CW 16/2025
