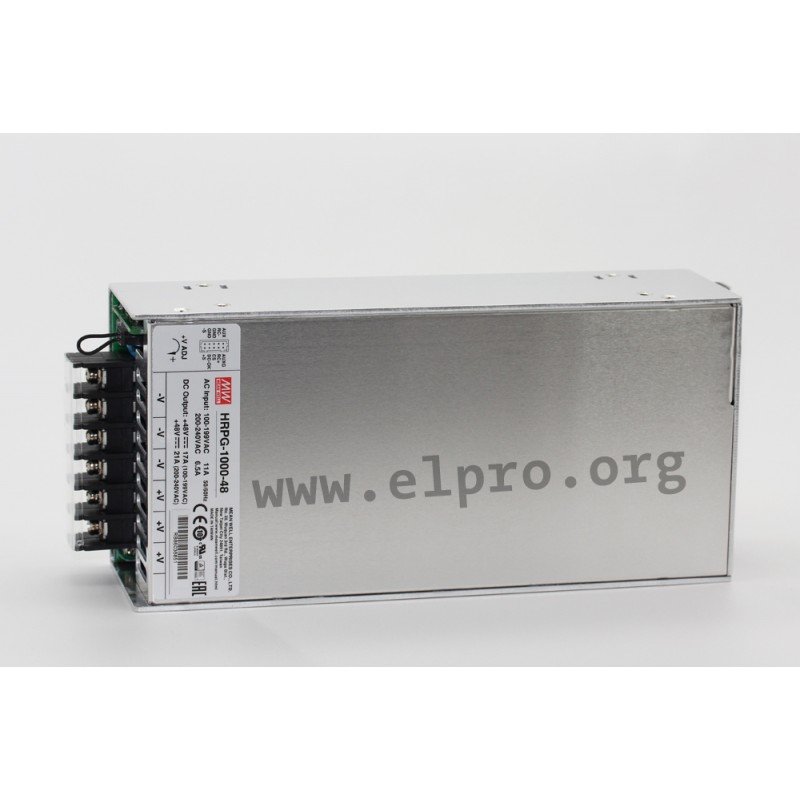

HRPG-1000-24

Mean Well power supply series HRPG-1000

Switching power supplies in an enclosed metal housing with 1000W, screw terminals, a fan, a built-in remote sense function, a universal input, a built-in remote ON/OFF control, a DC OK signal, a built-in auxiliary power (standby 5V/0,3A) and a low no-load power (<0,75W). These devices have a built-in active PFC function and are protected against overload (auto recovery), over voltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: HRPG-1000-12, HRPG-1000-15, HRPG-1000-24 and HRPG-1000-48.

  • single output
  • output: 960 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1,2mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 1530g
Mean Well HRPG-1000 series

HRPG-1000-24

111765 HRPG-1000-24 HRPG-1000-24 4711287437132 Mean Well power supply series HRPG-1000. Switching power supplies in an enclosed metal housing with 1000W, screw terminals, a fan, a built-in remote sense function, a universal input, a built-in remote ON/OFF control, a DC OK signal, a built-in auxiliary power (standby 5V/0,3A) and a low no-load power (&lt;0,75W). These devices&nbsp;have a built-in active PFC function and are protected&nbsp;against overload (auto recovery), over voltage as well as short circuit. They are suitable for an active current sharing of up to 4000W (3+1 units) and comply with&nbsp;EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series:&nbsp;HRPG-1000-12,&nbsp;HRPG-1000-15,&nbsp;HRPG-1000-24 and&nbsp;HRPG-1000-48. single output output: 960 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;1,2mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage&nbsp;I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70&deg;C weight: 1530g

Specifications

manufacturer
Manufacturer's name HRPG-1000-24
GTIN 4711287437132
Output voltage [V] 24
Efficiency [%] 93
Output current range [A] 0...42
Output voltage tolerance: [%] 1
Output power [W] 1008
Ripple [mVp-p] 200
Output voltage adjustment [V] 22...28
Data Sheet

Unit price

174,39 €

Volume discounts

Quantity Unit price
50 + 168,59 €

Stock: 32
Further delivery:
CW 18/2025
