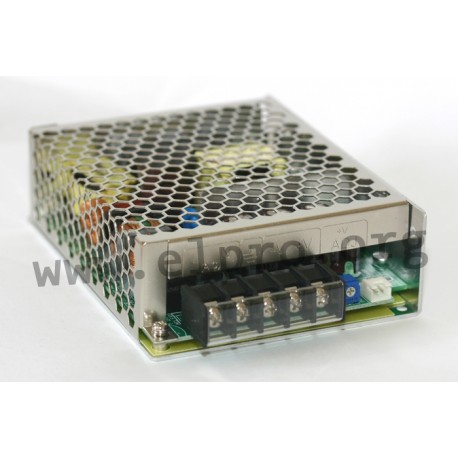

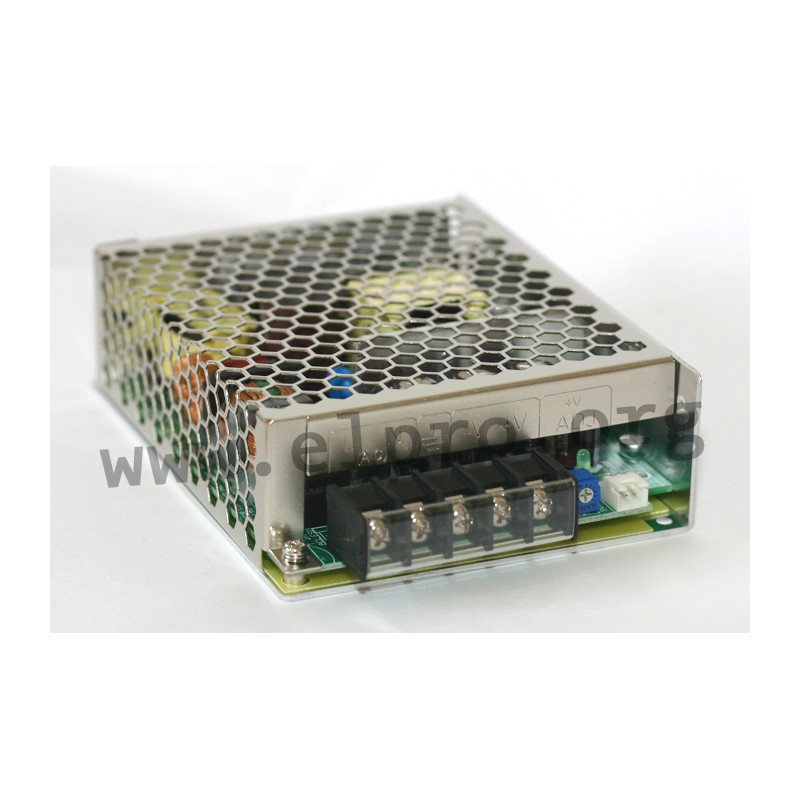

HRP-75-36

Mean Well power supply series HRP-75

Switching power supplies in an enclosed housing with 75W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-75-3.3, HRP-75-5, HRP-75-7.5, HRP-75-12, HRP-75-15, HRP-75-24, HRP-75-36 and HRP-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 65A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight: 470g
HRP-75-36

HRP-75-36

35314 HRP-75-36 HRP-75-36 4711287436203 Mean Well power supply series HRP-75. Switching power supplies in an enclosed housing with 75W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-75-3.3, HRP-75-5, HRP-75-7.5, HRP-75-12, HRP-75-15, HRP-75-24, HRP-75-36 and HRP-75-48. single output output: 49,5 to 76,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 65A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight: 470g

Specifications

manufacturer
Manufacturer's name HRP-75-36
GTIN 4711287436203
Output voltage [V] 36
Phase 2 phase
Efficiency [%] 89
Output current range [A] 0...2,1
Output voltage tolerance: [%] 1,5
Output power [W] 75,6
Output voltage adjustment [V] 32,39,6
Ripple [mV] 200
Data Sheet

Unit price

33,59 €

Volume discounts

Quantity Unit price
50 + 32,89 €

Stock: 26
Further delivery:
CW 18/2025
