HRP-600N3-36

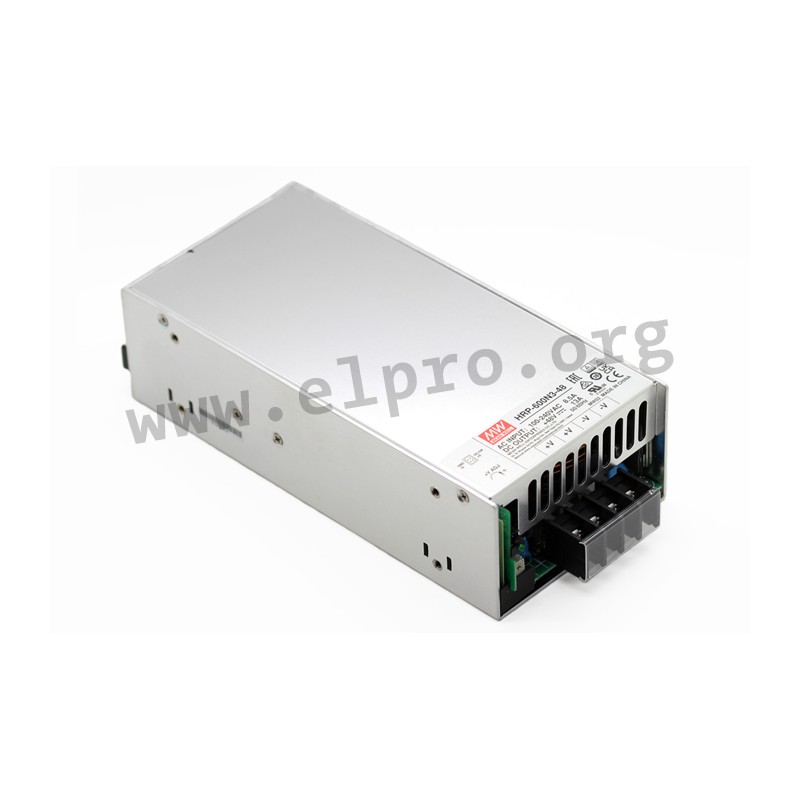

Mean Well power supply series HRP-600N3

Switching power supplies in an enclosed housing with 600W, screw terminals, a universal input and a high efficiency. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 300% (5s) and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-600N3-12, HRP-600N3-24, HRP-600N3-36 and HRP-600N3-48

  • single output
  • output: 624 to 648W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 218x105x61,5mm
  • weight: 1390g

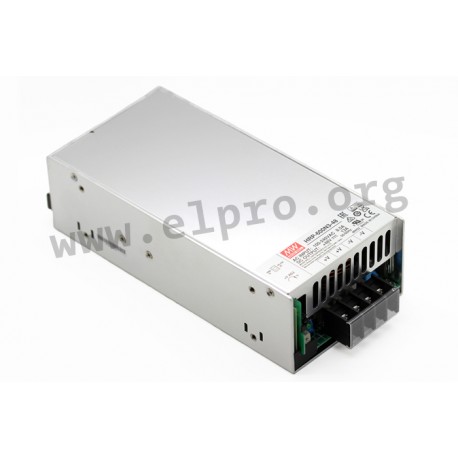

HRP-600N3-36, Mean Well switching power supplies, 600W, 300% peak power, HRP-600N3 series

HRP-600N3-36

241205 HRP-600N3-36 HRP-600N3-36 4711287484228 Mean Well power supply series HRP-600N3. Switching power supplies in an enclosed housing with 600W, screw terminals, a universal input and a high efficiency. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for a peak power of 300% (5s) and comply with UL62368-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: HRP-600N3-12, HRP-600N3-24, HRP-600N3-36 and HRP-600N3-48 single output output: 624 to 648W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C dimensions: 218x105x61,5mm weight: 1390g

Specifications

manufacturer
Manufacturer's name HRP-600N3-36
GTIN 4711287484228
Output voltage [V] 36
Efficiency [%] 89
Output current range [A] 0...17,5
Output voltage tolerance: [%] ±1
Output power [W] 630
Ripple [mVp-p] 200
Data Sheet

Unit price

120,19 €

Volume discounts

Quantity Unit price
50 + 116,19 €

Stock: 8
Further delivery:
CW 18/2025
