HRPG-600-12

Mean Well power supply series HRP-600 and HRPG-600

Switching power supplies in an enclosed housing with 600W, a DC fan, a built-in remote sense function, a DC OK signal, and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-600-3.3, HRP-600-5, HRP-600-7.5, HRP-600-12, HRP-600-15, HRP-600-24, HRP-600-36 and HRP-600-48.

Furthermore, our product range includes the following power supplies with a low no-load power (<0,75W), a built-in auxiliary power (standby 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-600-3.3, HRPG-600-5, HRPG-600-7.5, HRPG-600-12, HRPG-600-15, HRPG-600-24, HRPG-600-36 and HRPG-600-48.

  • single output
  • output: 396 to 648W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1,2mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C
  • weight HRP-600_: 1500g
  • weight HRPG-600_: 1580g

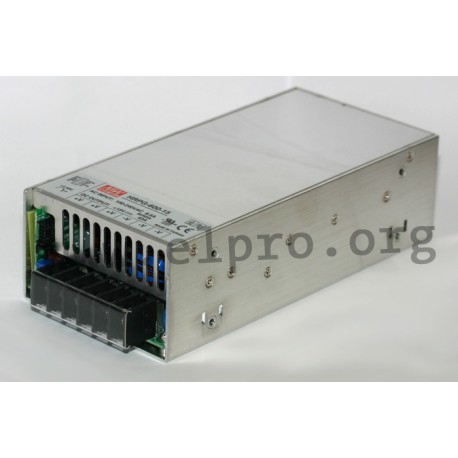

Meanwell HRPG-600 series

HRPG-600-12

35205 HRPG-600-12 HRPG-600-12 4711287437040 Mean Well power supply series HRP-600 and HRPG-600. Switching power supplies in an enclosed housing with 600W, a DC fan, a built-in remote sense function, a DC OK signal, and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They are using 105°C long life electrolytic capacitors and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-600-3.3, HRP-600-5, HRP-600-7.5, HRP-600-12, HRP-600-15, HRP-600-24, HRP-600-36 and HRP-600-48. Furthermore, our product range includes the following power supplies with a low no-load power (&lt;0,75W), a built-in auxiliary power (standby 5V/0,3A) as well as a built-in remote ON/OFF control: HRPG-600-3.3, HRPG-600-5, HRPG-600-7.5, HRPG-600-12, HRPG-600-15, HRPG-600-24, HRPG-600-36 and HRPG-600-48. single output output: 396 to 648W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A leakage current: &lt;1,2mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C weight HRP-600_: 1500g weight HRPG-600_: 1580g

Specifications

manufacturer
Manufacturer's name HRPG-600-12
GTIN 4711287437040
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...53
Output voltage tolerance: [%] 1
Output power [W] 636
Ripple [mVp-p] 120
Output voltage adjustment [V] 10,2...13,8
Data Sheet
